Installing the left air distribution flap motor (M21b)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

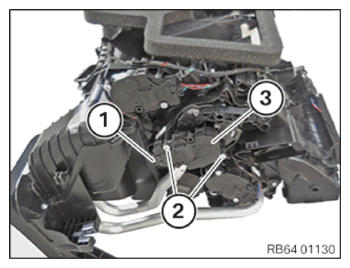

- Position the left air distribution flap motor (3).
- Tighten screws (2).TIGHTENING TORQUES SPECIFICATION
Heater/air conditioner Screw tightening torque 1.2 Nm - Connect connectors (1) and lock.
Follow-up work
- Refer to INSTALLING KNEE AIRBAG .
- Refer to INSTALLING LEFT AIR DUCT .
- Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to ADDRESSING THE CONTROLLER DRIVE .
