Installing the center of the ventilation grille with the integrated air conditioning control panel

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

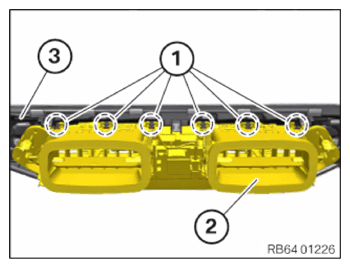

Place ventilation grille (2) on decorative strip (3) with the integrated air conditioning control panel and position it correctly.
Engage detents (1) on ventilation grille (2).

Courtesy of BMW OF NORTH AMERICA, INC.

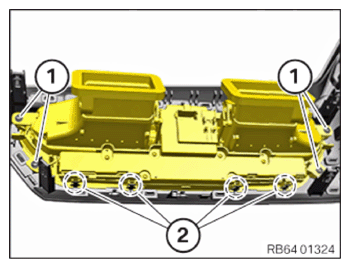

Engage the detents (2).
Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Ventilation grille to decorative strip/instrument panel
Screw	Tightening torque	1.8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .
Refer to INSTALLING THE SIDE PANEL ON DASHBOARD ON THE RIGHT .
