Install the blower for the heating and air-conditioning unit
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

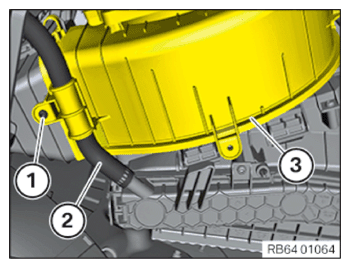

- Position the housing of the blower motor (3).
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Heater/air conditioner | ||
| Screw | Tightening torque | 1.2 Nm |
- Feed in the hose (2) at the housing of the blower motor (3).

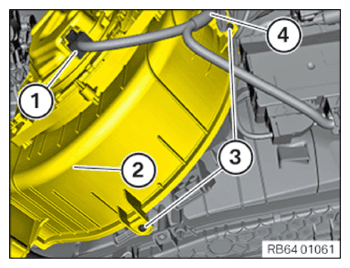

- Connect and lock plug connection (1) of the blower motor (2).
- Tighten down screws (3).TIGHTENING TORQUES SPECIFICATION
Heater/air conditioner Screw Tightening torque 1.2 Nm - Secure the cable clip (4) on the housing of the blower motor (2).
Follow-up work
- Refer to INSTALLING RIGHT AIR DUCT .
- Refer to VEHICLES WITH AIRBAG MODULE: INSTALLING KNEE AIRBAG .
- Refer to INSTALLING RIGHT FOOTWELL TRIM .
