Installing the catalytic converter (cylinders 4 to 6)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

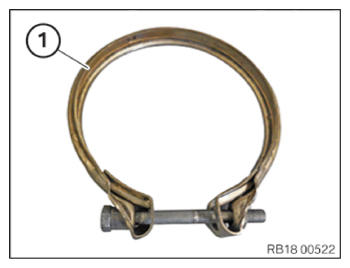

- Replace V-ribbon clips (1).
Parts: V-ribbon clips

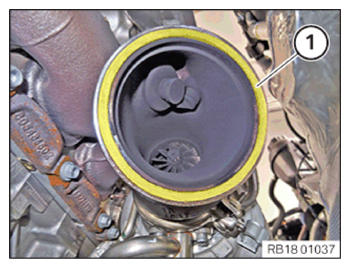

- Replace gasket (1).
Parts: Seal
- Guide in and install catalytic converter (1).
- Tighten the V-ribbon clip (2) hand-tight .
NOTE:
The following step(s) must be performed if the listed component(s) is/are installed.
- Version A:

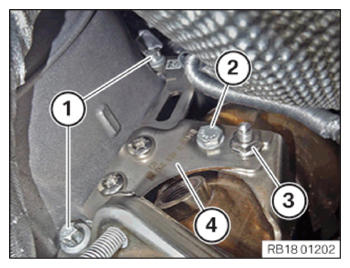

Insert and install the holder (4).
- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Transmission to engine | ||
| M8 | Tightening torque | 19 Nm |
| M12 | Tightening torque | 66 Nm |
- Replace the screw (2).
Parts: Screw
- Tighten down screw (2).
TIGHTENING TORQUE SPECIFICATIONS
| Catalytic converter to holder | ||
| M8 Replace screw. | Tightening torque | 19 Nm |
- Tighten nut (3).
TIGHTENING TORQUE SPECIFICATIONS
| Catalytic converter to holder | ||
| M8 | Tightening Torque | 24 Nm |
- Version B:

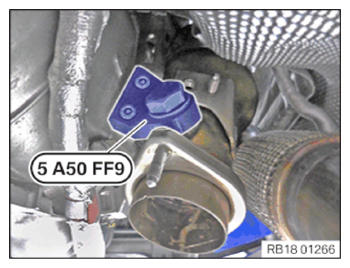

- Use special tool 5 A50 FF9 to align and fix the catalytic converter.
- Tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Special tool for catalytic converter | ||
| M8 screw. | Tightening torque | 10 Nm |
- Align the catalytic converter correctly and tighten the screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| Special tool for catalytic converter 2 | ||
| M18 screw. | Tightening torque | 25 Nm |

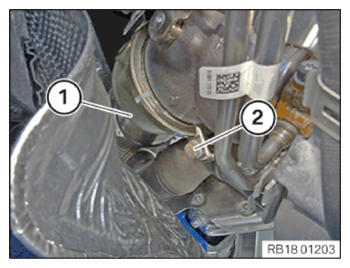

- Tighten the catalytic converter (1) with the V-ribbon clip (2).
TIGHTENING TORQUE SPECIFICATIONS
| Catalytic converter to exhaust turbo charger | ||
| cl Replace clamp after disassembly. | Tightening torque | 14 Nm |
- Loosen screw (1).

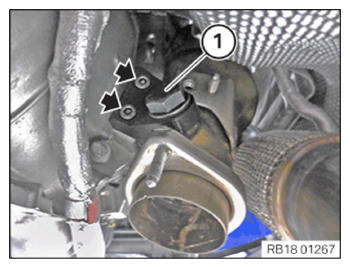

- Remove screws (arrows).
- Remove special tool 5 A50 FF9.
- Install holder (1).
Installing the oxygen sensor monitor for cylinders 4 to 6
NOTE:
TECHNICAL INFORMATION
Grease the threads of new oxygen sensors thinly and evenly.
For oxygen sensors that are reused, the following should be observed:
Thinly and evenly grease the oxygen sensor on the thread only. Do not clean the part of the oxygen sensor that does not protrude into the exhaust line (sensor ceramics) and do not grease.
For additional information see: OVERVIEW OF CONSUMABLES (APPLICABLE BMW PARTS CATALOGUE) (M4 2021-2023) .
Grease the threads of new oxygen sensors thinly and evenly.
For oxygen sensors that are reused, the following should be observed:
Thinly and evenly grease the oxygen sensor on the thread only. Do not clean the part of the oxygen sensor that does not protrude into the exhaust line (sensor ceramics) and do not grease.
For additional information see: OVERVIEW OF CONSUMABLES (APPLICABLE BMW PARTS CATALOGUE) (M4 2021-2023) .

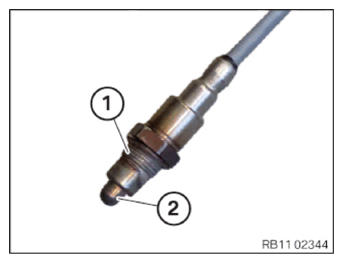

- Prepare the oxygen sensor.
The sensor ceramics must not be damaged.
- Thread
- Sensor ceramics
- Lightly and evenly grease the thread (1) of the oxygen sensor monitor.
CONSUMABLE DESCRIPTION
| Brake block paste * TU = Trade Unit. TU numbers cannot be ordered! For invoicing purposes only. |
3 g, Bag 100 g, Tube 5 g, TU* |
83192158851 83192158852 83230140233 |

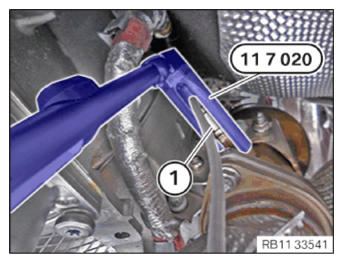

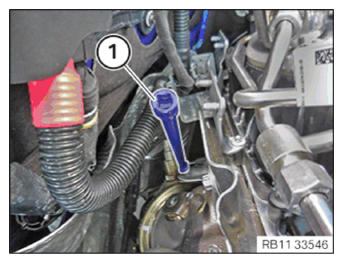

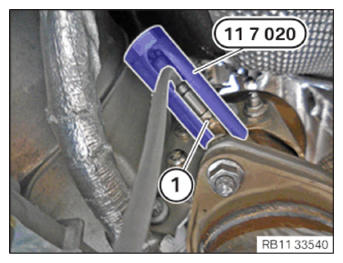

- Screw in the oxygen sensor monitor (1) for cylinders 4 to 6 using the special tool 0 491 074 (11 7 020) and hand-tighten (apply) it.
- Tighten (apply) the oxygen sensor monitor (1) for cylinders 4 to 6 using the special tool 0 491 074 (11 7 020) .
TIGHTENING TORQUE SPECIFICATIONS
| Oxygen sensor monitor on catalytic converter | ||
| M18X1.5 | tightening torque | 50 Nm |

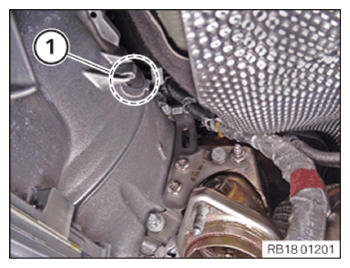

- Secure positive battery cable (2) at the clamp (1).
- Guide in heat shield (2) in the arrow direction and install.
- Replace the cable ties (1).
Parts: Cable tie
- Feed in and install the cable tie (1).

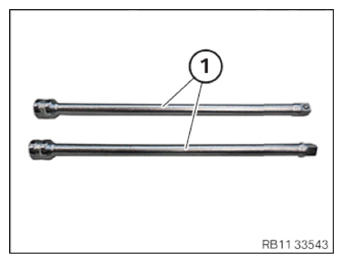

- Keep the commercially available tools ready.
| Number | Description |
|---|---|
| 1 | 3/8 extension |

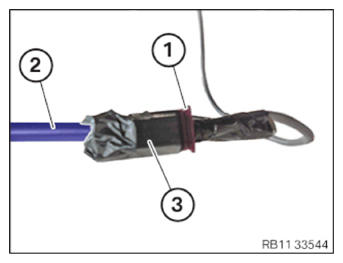

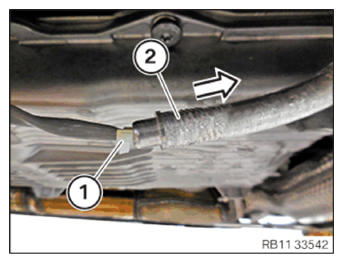

- Connect the connector (1) with the masking tape (3) to the commercially available tool (2).

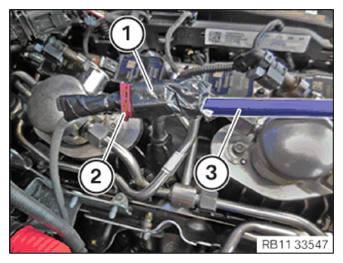

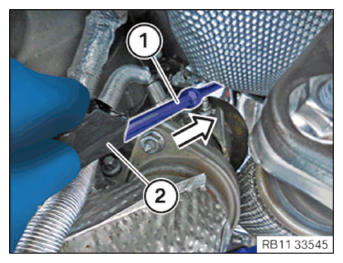

- Guide in the commercially available tool (1) with the connector (2) in the arrow direction upwards and position it.
- Thread out the commercially available (1) tool and place it to the side.
- Release the masking tape (1) from the connector (2) and the commercially available tool (3).

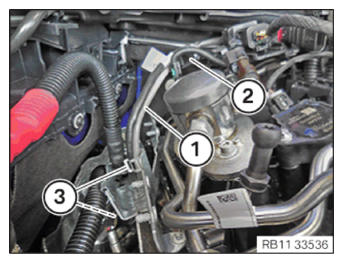

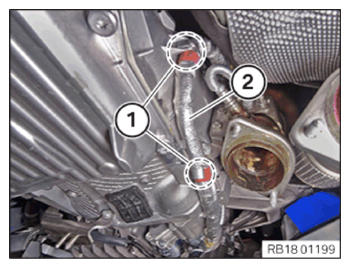

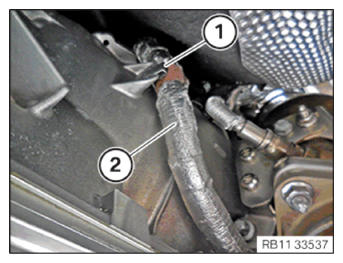

- Attach the cable (1) to the clamps (3).
- Guide in and install cable (1) on cable duct (2).

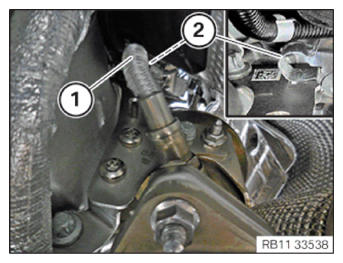

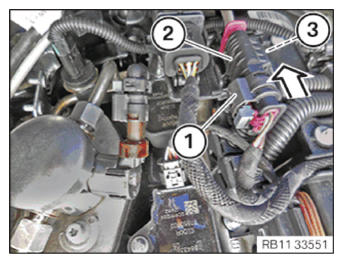

- Connect and lock connectors (1) and (2).
The connector (1) must engage audibly.
- Guide in the connector (1) and (2) into the carrier plate (3) in the arrow direction and install it.
The connectors (1) and (2) must engage audibly at the carrier plate.
- Fasten the heat shield (1) in the clamp (2).
- Clip the cables (2) into the holders (1).
Follow-up work
- Refer to INSTALLING THE INTERMEDIATE PIPE .
- Refer to INSTALLING THE LAMBDA OXYGEN SENSOR FOR THE CYLINDERS 4 TO 6 .
- Refer to INSTALLING THE HOLDER OF THE POSITIVE BATTERY CABLE .
- Refer to PARTIALLY INSTALLING THE COOLANT EXPANSION TANK OF THE HIGH-TEMPERATURE COOLANT CIRCUIT .
- Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
- Refer to INSTALLING THE FRONT-END STRUT .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE STRUT BRACE .
- Refer to INSTALLING THE FRONT HOOD SEAL .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
