Installing the catalytic converter with the center silencer

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Mount the exhaust system in a de-energized state, following the tightening sequence from the rear silencer towards the exhaust manifold.

NOTE: Description is for left component only.
Procedure on the right side is identical.

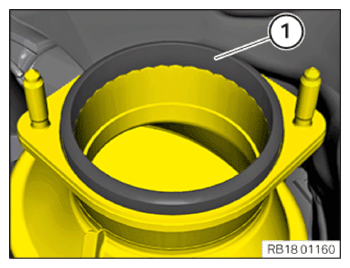

Replace the two seals (1).

Parts: Seals

G15298335

Courtesy of BMW OF NORTH AMERICA, INC.

Replace the catalytic converter with the center silencer (1).
Parts: Catalytic converter with the center silencer

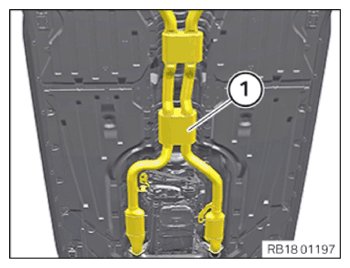

Insert and install the catalytic converter with the center silencer (1).

G15298336

Courtesy of BMW OF NORTH AMERICA, INC.

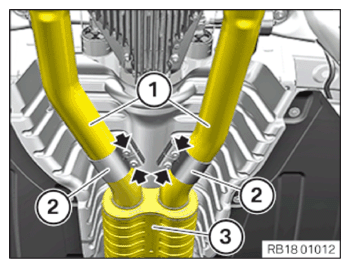

Connect rear silencer (1) using gripper clamps (2) to center silencer (3).
Center the gripper clamps (2) and tighten the nuts (arrows).

TIGHTENING TORQUE SPECIFICATIONS

Clamp with partial replacement of exhaust system
Gripper clamp	Tightening torque	38 Nm

G15298337

Courtesy of BMW OF NORTH AMERICA, INC.

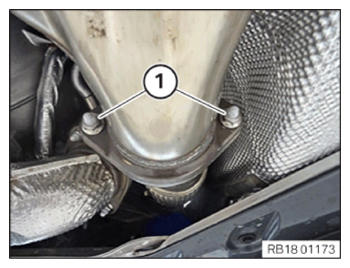

Tighten nuts (1).

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system to catalytic converters/intermediate pipe
M8 Replace nut.	Tightening torque Tightening torque	5 Nm 24 Nm

G15298338

Courtesy of BMW OF NORTH AMERICA, INC.

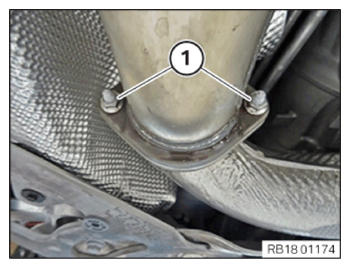

Tighten nuts (1).

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system to catalytic converters/intermediate pipe
M8 Replace nut.	Tightening torque Tightening torque	5 Nm 24 Nm

G15298339

Courtesy of BMW OF NORTH AMERICA, INC.

Version A:

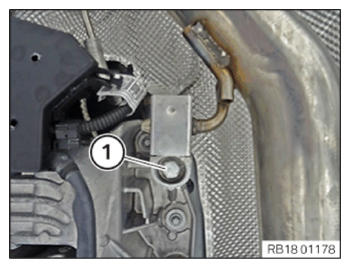

Replace the screw (1).

Parts: Screw

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system on the transmission cross member
M8x25 Replace screw.	Tightening Torque	19 Nm

G15298340

Courtesy of BMW OF NORTH AMERICA, INC.

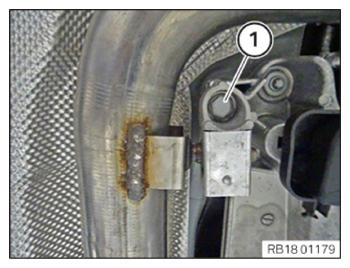

Replace the screw (1).

Parts: Screw

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system on the transmission cross member
M8x25 Replace screw.	Tightening Torque	19 Nm

G15298341

Courtesy of BMW OF NORTH AMERICA, INC.

Version B:

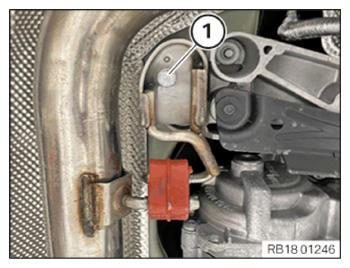

Replace the screw (1).

Parts: Screw

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system on the transmission cross member
M8x25 Replace screw.	Tightening Torque	19 Nm

G15298342

Courtesy of BMW OF NORTH AMERICA, INC.

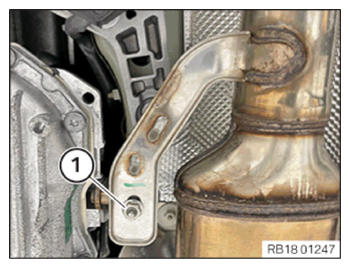

Tighten nut (1).

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system to holder
Nut M8	Tightening torque	19 Nm

G15298343

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
