Installing the rear silencer

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Insert and install the exhaust system (3) with the help of a support person.

Courtesy of BMW OF NORTH AMERICA, INC.

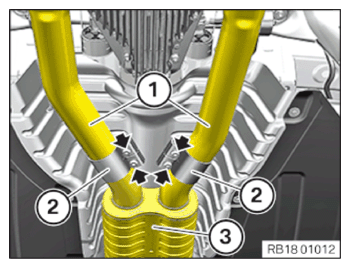

Connect rear silencer (1) to center silencer (3) using gripper clamps (2).
Center the gripper clamps (2) and tighten the nuts (arrows).

TIGHTENING TORQUE SPECIFICATIONS

Clamp with partial replacement of exhaust system
Gripper clamp	Tightening torque	38 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

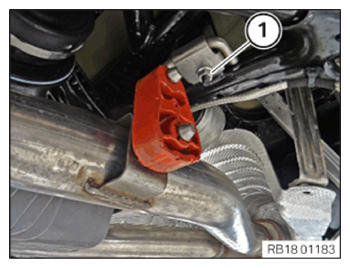

Tighten nut (1).

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system to rear axle carrier
M8 Nut	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

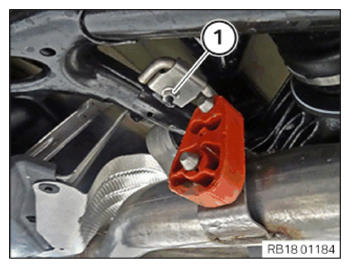

Tighten nut (1).

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system to rear axle carrier
M8 Nut	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

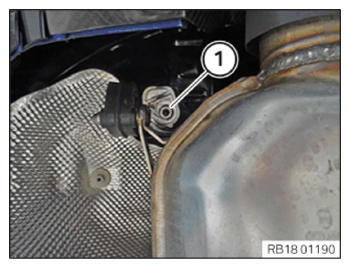

Tighten nut (1).

TIGHTENING TORQUE SPECIFICATIONS

Rear silencer to bumper bracket
M8	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

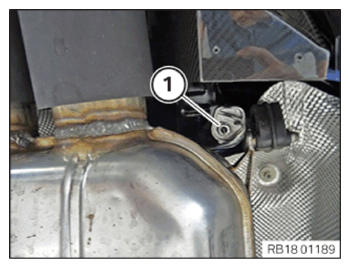

Tighten nut (1).

TIGHTENING TORQUE SPECIFICATIONS

Rear silencer to bumper bracket
M8	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

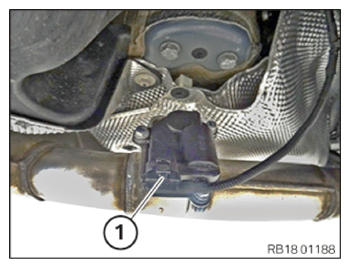

Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

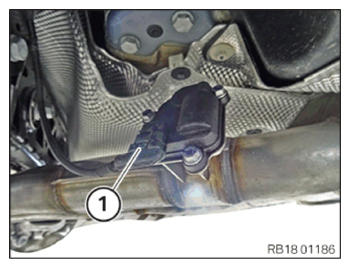

Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
