Installing the feed line for the transmission oil cooler
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Feed line for the transmission oil cooler

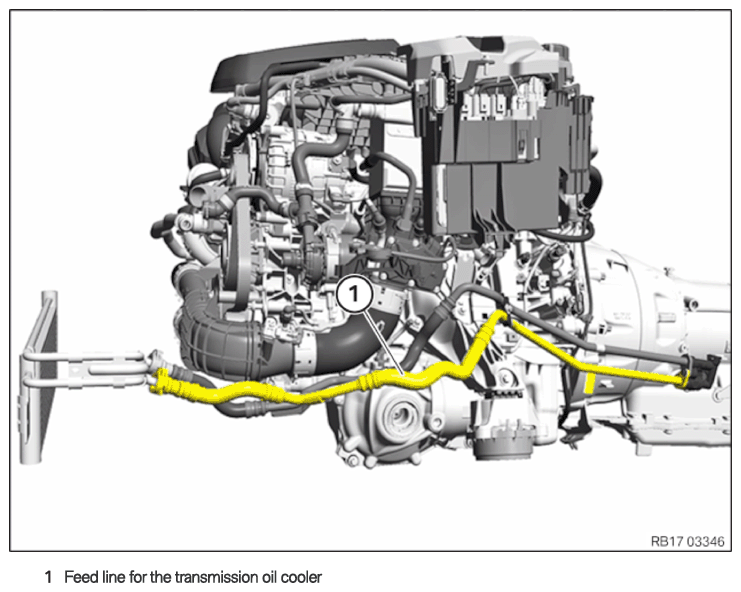

- Feed the feed line (1) in for the transmission oil cooler carefully and install it.

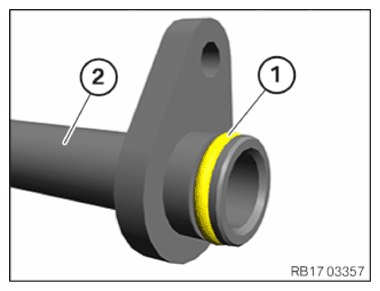

- Replace the sealing ring (1)
of the feed line (2)
for the transmission oil cooler.
Parts: Sealing ring
- Connect the feed line (1) for the transmission oil cooler.

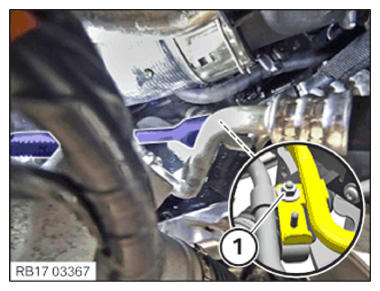

- Tighten down screw (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Transmission oil lines to thermostat/automatic transmission | ||
| M6x25 | tightening torque | 8 Nm |

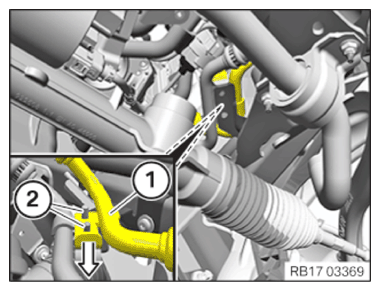

- Attach the feed line (1) for the transmission oil cooler in the holder (2) .

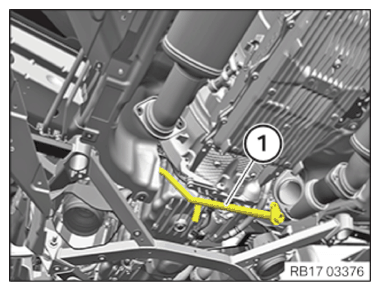

- Feed in the feed line (1) for the transmission oil cooler in arrow direction at the holder (2) and install it.
- Tighten nut (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Holder for transmission oil line | ||
| BM6 | Tightening torque | 8 Nm |

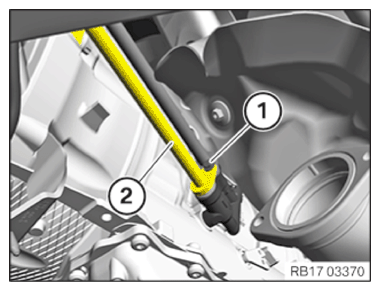

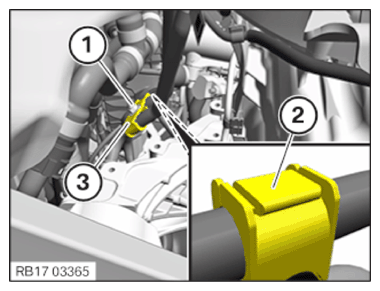

- Connect the feed line (2) for the transmission oil cooler.

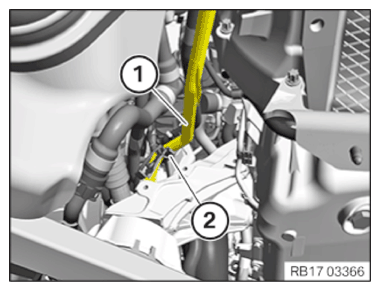

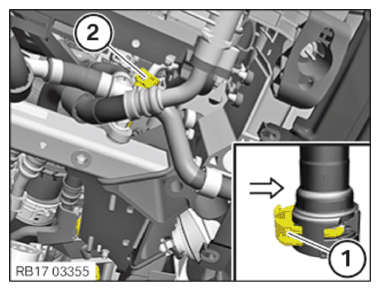

- Press the lock (1) in the arrow direction and lock the feed line (2) for the transmission oil cooler.
- Close the holder (3)
and lock it.
The lock (2) must engage audibly.
- Close the rubber retainer (1) .
- Tighten nut (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Holder for transmission oil line | ||
| BM6 | Tightening torque | 8 Nm |
Follow-up work
- Refer to INSTALLING FAN COWL .
- Refer to CONNECTING THE COOLANT LINE TO THE RADIATOR .
- Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
- Refer to INSTALLING THE INTAKE FILTER HOUSING ON THE LEFT (FRONT-END STRUT REMOVED) .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING UPPER CROSS CONNECTION .
- Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE FRONT HOOD SEAL .
- Refer to INSTALLING THE CLEAN AIR PIPE FOR CYLINDERS 1 TO 3 .
- Refer to INSTALLING THE FRONT-END STRUT .
- Refer to SECURING THE UNIVERSAL JOINT ON THE STEERING GEAR .
- Refer to INSTALLING THE INTERMEDIATE PIPE .
- Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
- Refer to CHECKING/TOPPING UP THE OIL LEVEL IN THE AUTOMATIC TRANSMISSION .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
- Refer to INSTALLING THE BOTTOM FRONT RIGHT SIDE COVER .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE FRONT SPOILER .
