Installing the engine oil cooler

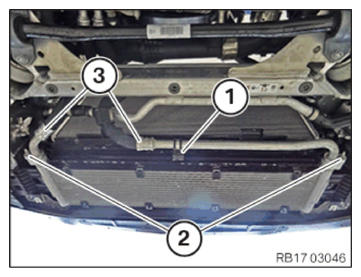

• Replace the sealing rings (1) from the lines (2).

  Parts:  Sealing ring

  Courtesy of BMW OF NORTH AMERICA, INC.

• Guide in the engine oil cooler (1) in the arrow direction and install it.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Engine oil cooler on bumper bracket
  M6X25	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect lines (3).
• Tighten the nuts (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Lines on engine oil cooler
  Nut M6	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Line clip on engine oil cooler
  Screw	Tightening torque	4.5 Nm

• Replace the rivet (1).

  Parts:  Rivet

• Install and rivet the damper (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE BOTTOM FRONT RIGHT SIDE COVER .
• Refer to INSTALLING BOTTOM FRONT COVER FROM THE SIDE .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING THE FRONT SPOILER .
• Refer to CHECKING ENGINE OIL LEVEL .
