Removing the external radiator on the right front
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING FRONT RIGHT WHEEL .
- Refer to REMOVING THE FRONT RIGHT WHEEL ARCH COVER FRONT SECTION .
- Refer to REMOVING THE RIGHT HAND FRONT BOTTOM SIDE COVER .
WARNING:
Hot surfaces
.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
NOTE:
TECHNICAL INFORMATION
Immobilization period-long fill of coolant!
Do not reuse used coolant.
When replacing and removing components which rely on the corrosion protection effect of the coolant, it is essential to change the coolant. The cooling system must therefore be emptied and refilled.
In the case of other removal work involving the draining of part quantities of coolant, the coolant level must be topped up with new coolant.
Immobilization period-long fill of coolant!
Do not reuse used coolant.
When replacing and removing components which rely on the corrosion protection effect of the coolant, it is essential to change the coolant. The cooling system must therefore be emptied and refilled.
In the case of other removal work involving the draining of part quantities of coolant, the coolant level must be topped up with new coolant.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
- Guide out and remove air duct (1).

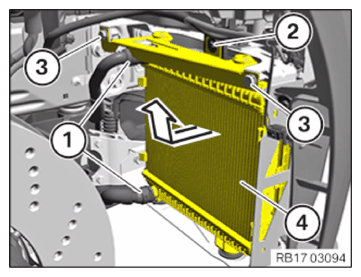

- Unlock and remove the coolant lines (1).
- Catch and dispose of escaping coolant.
- Release the screw (2).
- Loosen screws (3).
- Guide the right external radiator (4) out of the lower rubber mounts in the arrow direction and remove it.
- Catch and dispose of escaping coolant.
