Installing the tank vent valve

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

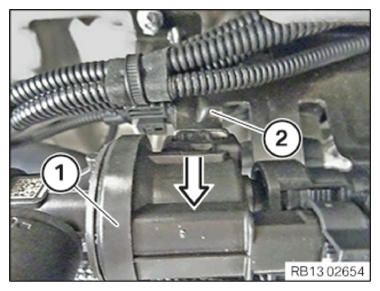

Tighten the tank vent valve (1) in the direction of arrow on the holder (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

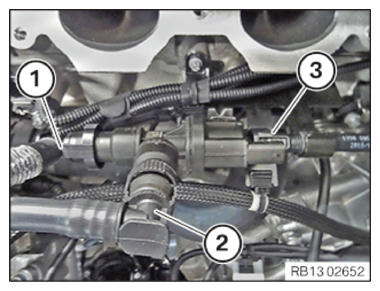

Connect and lock the tank vent lines (1) , (2) and (3) .
The tank vent lines (1) , (2) and (3) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

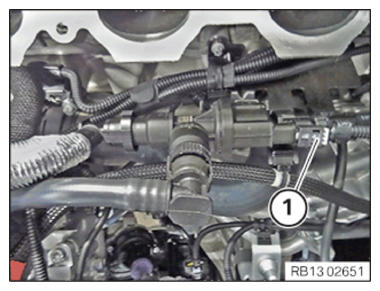

Connect connectors (1) and lock.

The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING CHARGE AIR COOLER .
Refer to INSTALLING THE COOLANT EXPANSION TANK FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
Refer to CONNECTING THE COOLANT LINES FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
Refer to SECURING THE ENGINE OIL COOLER .
Refer to INSTALLING FAN COWL .
Refer to CONNECTING THE COOLANT LINE TO THE RADIATOR .
Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
Refer to INSTALLING UPPER CROSS CONNECTION .
Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
Refer to INSTALLING THE FRONT HOOD SEAL .
Refer to INSTALLING THE INTAKE FILTER HOUSING ON THE LEFT (FRONT-END STRUT REMOVED) .
Refer to INSTALLING THE CLEAN AIR PIPE FOR CYLINDERS 1 TO 3 .
Refer to INSTALLING THE CONTROL UNIT HOLDER .
Refer to PARTIALLY INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
Refer to INSTALLING THE DME CONTROL UNIT .
Refer to INSTALLING THE COVER FOR THE DME CONTROL UNIT .
Refer to INSTALLING ACOUSTIC COVER .
Refer to INSTALLING THE STRUT BRACE .
Refer to INSTALLING THE FRONT-END STRUT .
Refer to CONNECTING ALL BATTERY GROUND LEADS .
Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
Refer to FILLING AND VENTING THE LOW-TEMPERATURE COOLANT CIRCUIT .
Refer to INSTALLING THE STIFFENING PLATE .
Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
Refer to INSTALLING THE BOTTOM FRONT RIGHT SIDE COVER .
Refer to INSTALLING BOTTOM FRONT COVER FROM THE SIDE .
Refer to INSTALLING FRONT UNDERBODY PROTECTION .
Refer to INSTALLING THE FRONT SPOILER .
