Removing clean air pipe cylinders 4-6
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Precondition
- Ignition is switched off.
Preliminary work
- Refer to REMOVING RIGHT INTAKE SILENCER HOUSING .

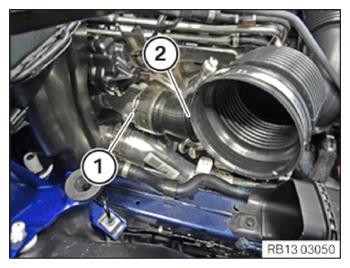

- Unlock clamp (1) and engage in this position.

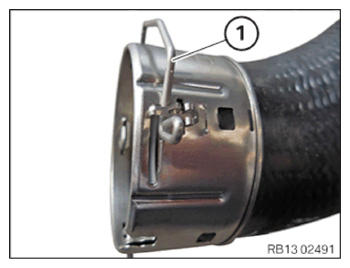

- Unlock the clamp (1).
- Guide out and remove clean air pipe (2) for cylinders 4-6.
