Installing the clean air pipe for cylinders 4-6

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

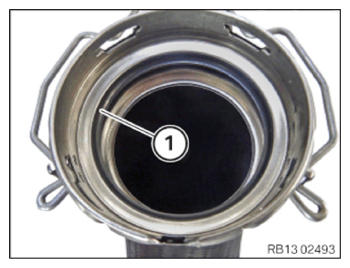

Check seal (1) for damage, replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

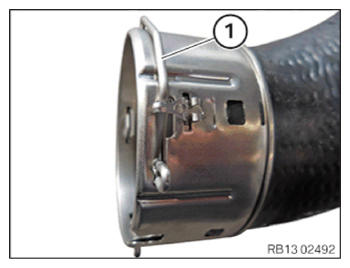

Lock clamp (1).

Courtesy of BMW OF NORTH AMERICA, INC.

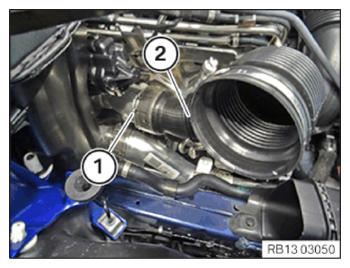

Guide in and install clean air pipe (2) for cylinders 4-6.
Ensure that clamp (1) locks audibly.

G15297682

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
