Install charge air pipe cylinders 4 to 6

• Check seal (1)  for damage, replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing the damaged seal

• Remove damaged seal.

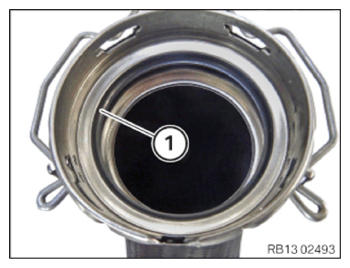

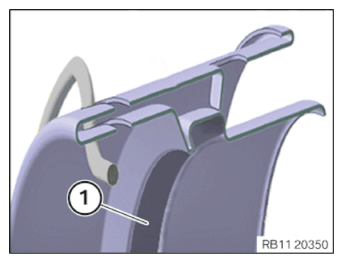

• Clean the gasket groove (1)  with a dry cloth.

  The gasket groove (1)  must be clean.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace gasket.

  Parts:  Gasket

• Install the seal dry without lubricant or mounting agent.

• Thread in seal and install.

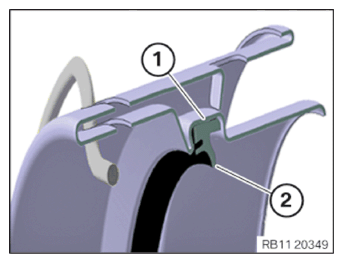

• Make sure that the seal is installed correctly in the gasket groove (1)  .
• Make sure that the sealing lip (2)  is directed to the inside as shown.

  Courtesy of BMW OF NORTH AMERICA, INC.

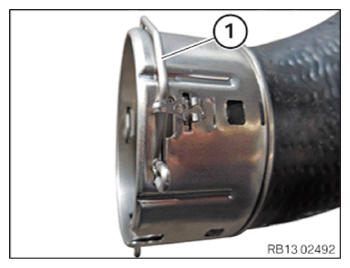

• Lock clamp (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

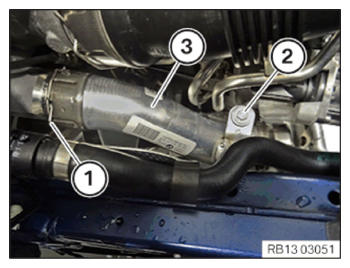

• Guide in and install the charge air pipe of cylinders 4 to 6 (3)  .
• Ensure that clamps (1)  engage audibly.
• Tighten down screw (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.
