Removing the tension spring

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Shutting hood or trunk lid.
Injury hazard!

Support hood/trunk lid in fully open position with the aid of a suitable device.

Preliminary work

Refer to REMOVING LUGGAGE COMPARTMENT FLOOR COVERING .
Refer to REMOVING EMERGENCY WHEEL .
Refer to REMOVING THE LOADING EDGE TRIM .
Refer to REMOVING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .

CAUTION: Shutting hood or trunk lid.
Injury hazard!

Support hood/trunk lid in fully open position with the aid of a suitable device.

CAUTION: Tension spring.
Injury hazard!

Wear hand protection while removing and installing the tension spring.

NOTE: Description is for left component only. Procedure on the right side is identical.

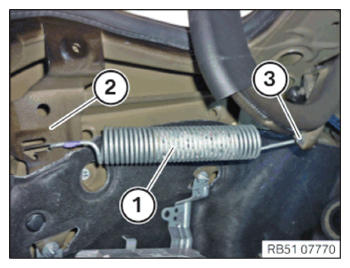

Note down the position of the tension spring (1) on the rear holder (2).
Detach the tension spring (1) from the rear holder (2).
Feed out the tension spring (1) from the hinge (3).

Courtesy of BMW OF NORTH AMERICA, INC.
