Installing the outside door handle

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

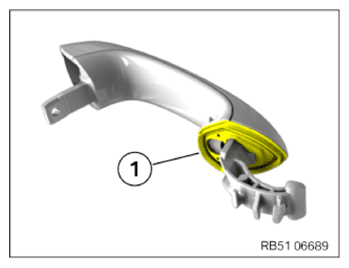

Check the seal (1) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
Check the seal (1) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

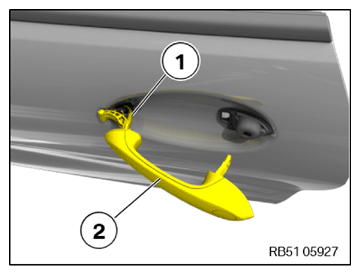

Insert the front outside door handle (2).
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

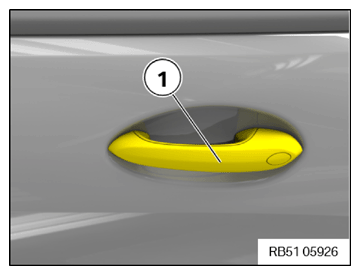

Insert the rear outside door handle (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

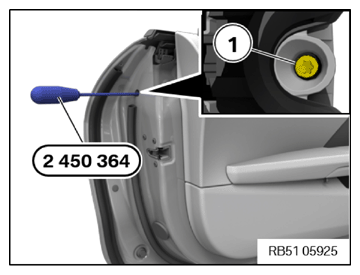

Tighten the clamping bolt (1) on the outside door handle support with the special tool 2 450 364.

TIGHTENING TORQUE SPECIFICATIONS

Clamping bolt for door handle
screw	Tightening torque	2 Nm
screw	Tightening torque	2 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Outside door handle to door
Clamping bolt	Tightening torque	3 Nm
Clamping bolt	Tightening torque	3 Nm

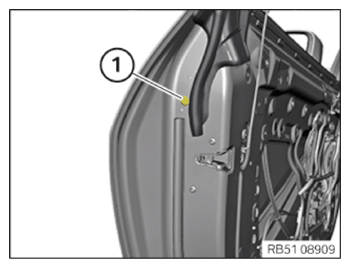

Install seal plug (1).

Courtesy of BMW OF NORTH AMERICA, INC.

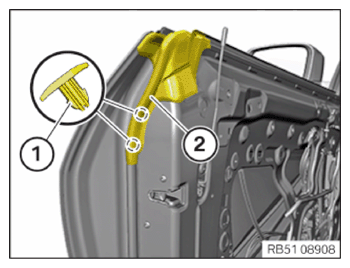

Fasten the seal (2) with the clips (1).

Courtesy of BMW OF NORTH AMERICA, INC.
