Installing the guide for the rear bumper panel at the side
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

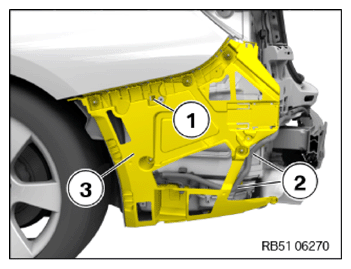

- Position the guide for the rear side bumper cover (3).
- Lock (1) must engage audibly.
- Clip in the clips (2) of the vehicle wiring harness.

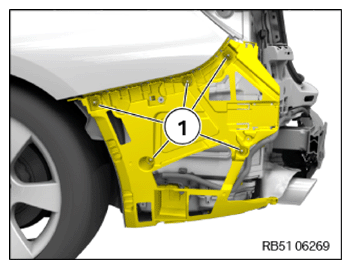

- Tighten nuts (1).TIGHTENING TORQUE SPECIFICATIONS
Rear bumper cover guide on the side of the body Nut and washer assembly with paint scrape groove Tightening torque 5 Nm
Follow-up work
- Refer to IF INSTALLED: INSTALLING THE LANE CHANGE WARNING SENSOR .
- Refer to IF INSTALLED: INSTALLING THE EMERGENCY HORN (ADDITIONAL WORK ON ANTI-THEFT ALARM SYSTEM) .
- Refer to INSTALLING THE REAR BUMPER COVER .
- Refer to INSTALLING THE TAIL LIGHT ON THE LEFT AND RIGHT SIDE PANELS .
- Refer to INSTALLING THE TRIM IN THE WATER CHANNEL ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE LEFT AND RIGHT .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
