Replacing the bellows of the joint at the transmission end
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

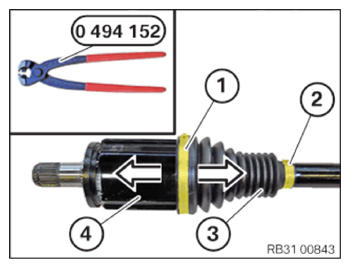

- Release the clamps (1) and (2), and cut and remove them with the special tool 0 494 152 (32 1 260) in a transverse direction to the ear.

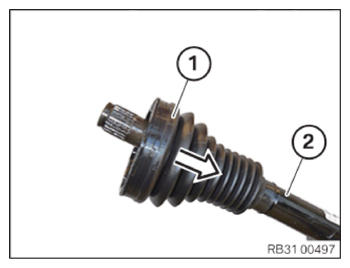

- Release the bellows (3) from the joint housing (4) in the arrow direction.
- Pull the joint housing (4) down in the arrow direction.

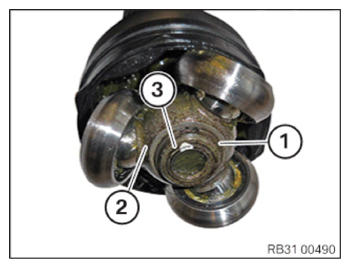

- Release the circlip (1) for the tripod (2) from the output shaft (3).
- Seal bore of output shaft with a screw (2).

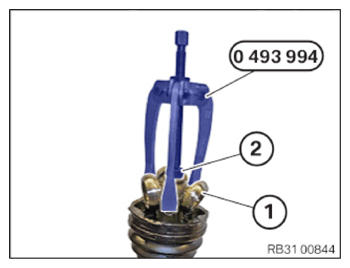

- Pull down tripod (1) using special tool 0 493 994 (11 8 310) .
- Remove all traces of previous lubricating grease.
- Pull down bellows (1) from output shaft (2).
- Replace the bellows (1) and the circlips.
Parts: Clamps
- Push the circlip up onto the output shaft (2).
- Slide the bellows (1) onto the output shaft (2).
- Clean tripod (2).

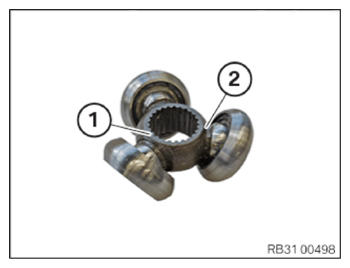

- Position the tripod (2) on the output shaft in such a way that the flat side (1) points to the circlip.

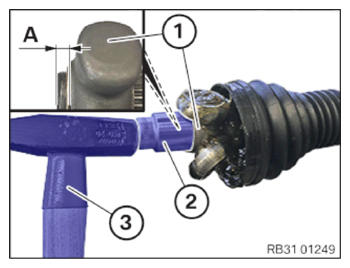

- Hit the tripod (1) using the standard tool (2) and the standard tool (3) further onto the output shaft until the circlip can be mounted.

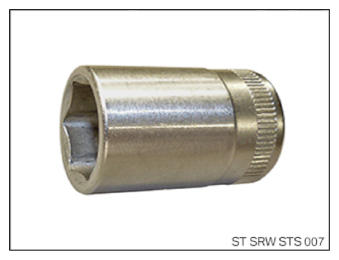

Standard tool: Socket wrench for hexagon head
Socket wrench for hexagon
Socket wrench for hexagon (SW24)
For output shafts by the manufacturer neapco, the dimension (A) cannot be exceeded.
Dimension (A) = 4.9 mm
- Replace the circlip (1).
Parts: Circlip
- Mount the circlip (1) for the tripod (2) on the output shaft (3).
- Grease tripod (2) and the joint housing (see table).
- In order to grease the inboard
CV joint, it is imperative to observe the specific lubricating grease and quantity!
Part number of bellows 8 680 223 8 488 704 8 657 288 Part number of lubricating grease 2 286 018 2 179 708 2179708 Amount of lubricating grease 140 g 165 g 165 g CONSUMABLE SPECIFICATIONLubricating grease Renolit CX-TP 1 100 g, Bag 83192286018 CONSUMABLE SPECIFICATIONLubricating grease One Lube Improved 110g, Bag 83232179708 - Slide the joint housing (4) onto the tripod in the arrow direction.

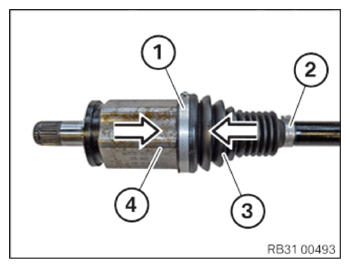

- Mount the bellows (3) on the joint housing (4) in the arrow direction.
- Position the circlips (1) and (2) on the bellows (3).

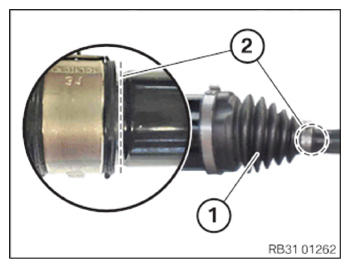

- Position the bellows (1) for the taper (2) on the output shaft.

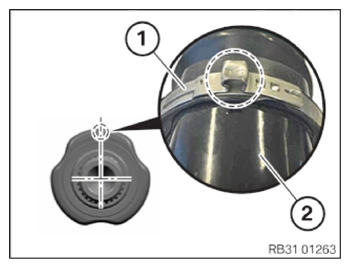

- Position the hook fastener of the circlip (1) in the center of the joint housing (2) as shown.
NOTE:
TECHNICAL INFORMATION
Observe the notes on the disassembly and installation of low profile hose clamps and ear hose clamps!
For additional information see: 31 60... NOTES ON THE DISASSEMBLY AND INSTALLATION OF LOW PROFILE HOSE CLAMPS .
For additional information see: NOTES ON INSTALLATION OF EAR HOSE CLAMPS .
Observe the notes on the disassembly and installation of low profile hose clamps and ear hose clamps!
For additional information see: 31 60... NOTES ON THE DISASSEMBLY AND INSTALLATION OF LOW PROFILE HOSE CLAMPS .
For additional information see: NOTES ON INSTALLATION OF EAR HOSE CLAMPS .
- Check the position from joint housing (4) and the bellows (3), correct if necessary.
- Tighten the circlips (1) and (2).
