Inserting the output shaft

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Precondition

Output shaft removed

NOTE: RISK OF DAMAGE
Damage to the transmission end joint of the output shaft .
Pull or push between the output shaft and the transmission end joint leads to damage to the transmission end joint .

Avoid pulling or pushing between the output shaft and the transmission end joint when removing, installing and repairing the output shaft.

NOTE: TECHNICAL INFORMATION
The transmission-side joint may be bent by max. 18° and the wheel-side joint by max. 45°!

NOTE: TECHNICAL INFORMATION
Repair should only be carried out via the transmission end-side joint! Do not push off or dismantle the wheel-side joint!

Preliminary work

Refer to DETERMINING THE MANUFACTURER OF THE OUTPUT SHAFT .

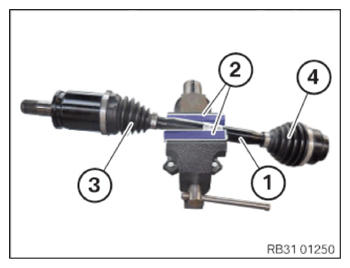

Clamp the output shaft (1) in the vice with aluminum vice jaw protectors (2).
(3) = Transmission-end bellows

(4) = Wheel-side bellows
