Replace wheel bearings

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly .
Danger! Immobilization period-threatening injuries!

Observe safety instructions on raising the vehicle using a vehicle hoist.
For additional information see: 00... RAISE THE VEHICLE USING A VEHICLE LIFT .

NOTE: RISK OF DAMAGE
Component damage caused by striking tools .
Brute force can result in component damage .

Only use those tools intended for the work.

Preliminary work

Refer to THE INFORMATION ON THE CARBON CERAMIC BRAKE .
Refer to REMOVING THE FRONT LEFT WHEEL .
Refer to RELEASING THE FRONT BRAKE CALIPER .
Refer to REMOVING FRONT BRAKE DISC .

Release nut (1).
Release the tension strut (2) from the swivel bearing (3).

G15331974

Courtesy of BMW OF NORTH AMERICA, INC.

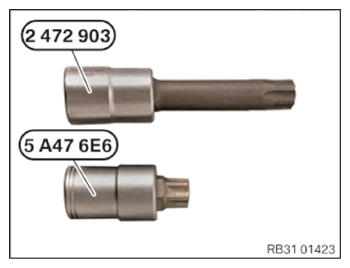

Use the special tool 2 472 903 or 5 A47 6E6 for unscrewing and tightening the spherical-collar screws.

G15331975

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Secure component against falling.

Release the spherical-collar screws (arrows) with the standard tool (1) and special tool 5 A47 6E6 .

G15331976

Courtesy of BMW OF NORTH AMERICA, INC.

Standard tool: Pivoting extension 1/2 inch

Swivel extension 1/2 inch

G15331977

Courtesy of BMW OF NORTH AMERICA, INC.

Swivel extension 1/2 inch

Remove the wheel bearing.

NOTE: TECHNICAL INFORMATION
Keep the connection between the wheel bearing and the swivel bearing clean and free of oil and grease.

Replace the wheel bearing.
Parts: Wheel bearing

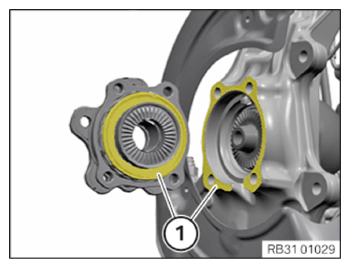

Clean contact surfaces (1).

G15331978

Courtesy of BMW OF NORTH AMERICA, INC.

Position wheel bearing on swivel bearing.
Replace the spherical-collar screws (arrows).
Parts: Spherical-collar screw

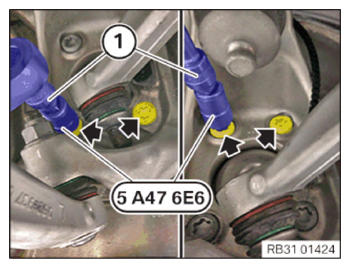

Tighten spherical-collar screws crosswise with standard tool (1) and special tool 5 A47 6E6 .

G15331979

Courtesy of BMW OF NORTH AMERICA, INC.

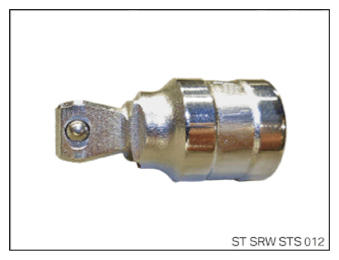

Standard tool: Pivoting extension 1/2 inch

Swivel extension 1/2 inch

G15331980

Courtesy of BMW OF NORTH AMERICA, INC.

Swivel extension 1/2 inch

TIGHTENING TORQUE SPECIFICATIONS

Wheel bearing to swivel bearing
M12 Replace spherical collar screws. Tighten the spherical-collar screws in crosswise sequence . The tightening sequence must strictly be followed and carried out on all spherical-collar screws at the same time!	Tightening torque	20 Nm
	Initial torque	140 Nm
	Unscrew all bolts .	max. 45°
	Tightening torque	120 Nm
	Angle of rotation	90°

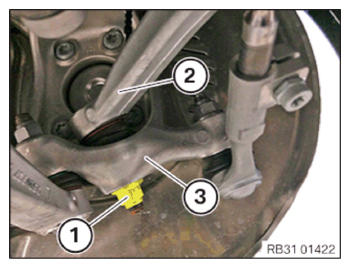

Position the tension strut (2) on swivel bearing (3).
Replace nut (1).
Parts: Nut
Tighten nut (1).

G15331981

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Tension strut to swivel bearing
M14 Replace nut.	Tightening torque	175 Nm

Follow-up work

Refer to INSTALLING FRONT BRAKE DISK .
Refer to FASTENING FRONT BRAKE CALIPER .
Refer to ATTACHING THE FRONT LEFT WHEEL .
Refer to PLACING THE BRAKE PADS ON THE BRAKE DISK/PUTTING THEM INTO OPERATION .
