Installing the swivel bearing
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

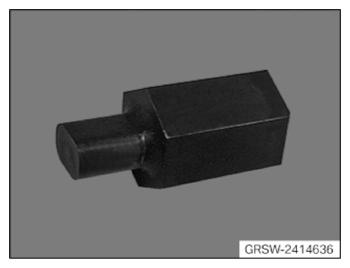

- Keep special tool 0 494 541 (31 2 230) at hand.

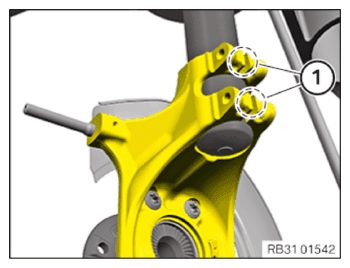

- Spread apart the swivel bearing in the marked areas (1) with the special tool 0 494 541 (31 2 230) .

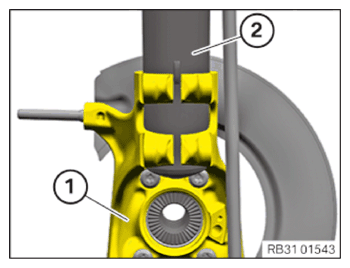

- Feed in and install the swivel bearing (1) at the spring strut (2).
- Ensure the correct installation position of the spring strut (1) and the swivel bearing (2) in the marked area

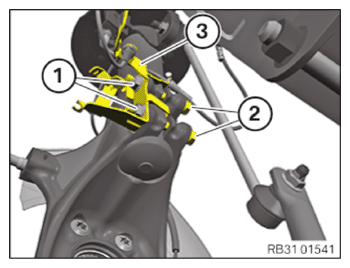

- Install the screws (2).
- Insert the holder (3).
- Counter support at the nuts (1).
- Tighten the screws (2).
TIGHTENING TORQUE SPECIFICATIONS
| Spring strut to swivel bearing | ||
| M10 Replace screw and nut. Tightening via screw. | Tightening torque | 56 Nm |
Follow-up work
- Refer to INSTALLING FRONT BRAKE DISK .
- Refer to FASTENING THE WHEEL SPEED SENSOR ON SWIVEL BEARING .
- Refer to FASTENING FRONT BRAKE CALIPER .
- Refer to ATTACHING THE WISHBONE, TENSION STRUT AND TIE ROD END ON THE SWIVEL BEARING .
- Refer to FASTENING THE OUTPUT SHAFT ON THE WHEEL BEARING .
- Refer to INSTALLING FRONT LEFT OR RIGHT WHEEL .
- Refer to PLACING THE BRAKE PADS ON THE BRAKE DISK/PUTTING THEM INTO OPERATION .
- Refer to PERFORMING CHASSIS ALIGNMENT CHECK .
