Replacing the swivel bearing

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

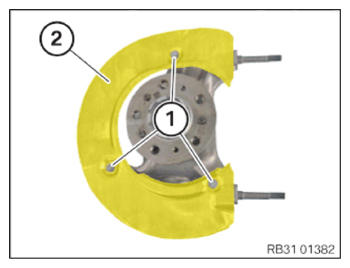

Loosen screws (1).
Remove the brake guard plate (2).

Courtesy of BMW OF NORTH AMERICA, INC.

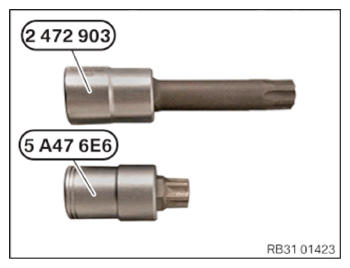

Use special tool 2 472 903 or 5 A47 6E6 for unscrewing the spherical-collar screws.

Courtesy of BMW OF NORTH AMERICA, INC.

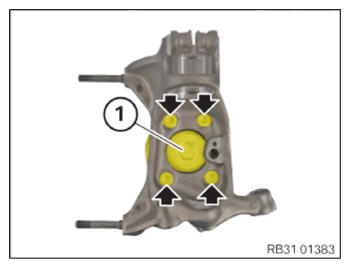

Unscrew the spherical-collar screws (arrows).
Remove the wheel bearing (1).
Recut the thread in the wheel bearing (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Keep the connection between the wheel bearing and the swivel bearing clean and free of oil and grease.

Replace swivel bearing (1).
Parts: Swivel bearing

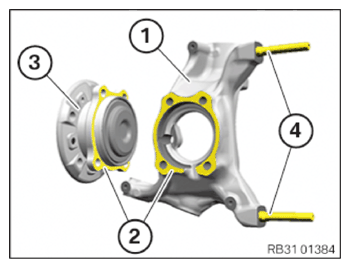

Clean the contact surfaces (2) on the swivel bearing (1) and the wheel bearing (3).
Replace the stud bolt (4).
Parts: Stud bolts

Screw in the stud bolts (4) and tighten them.

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Stud bolt to swivel bearing
M12 Replace the stud bolt.	Tightening torque	20 Nm

Position the wheel bearing (1) on the new swivel bearing.
Replace the spherical-collar screws (arrows).
Parts: Spherical-collar screw

Tighten the spherical-collar screws (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Wheel bearing to swivel bearing
M12 Replace spherical collar screws. Tighten the spherical-collar screws in crosswise sequence . The tightening sequence must strictly be followed and carried out on all spherical-collar screws at the same time!	Tightening torque	20 Nm
	Initial torque	140 Nm
	Unscrew all bolts .	max. 45°
	Tightening torque	120 Nm
	Angle of rotation	90°

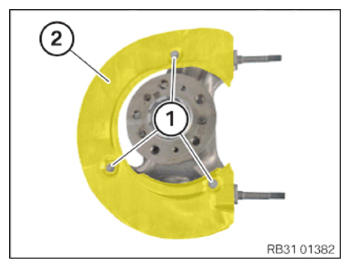

Position the brake guard plate (2).
Replace screws (1).
Parts: Screws
Tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Brake guard plate at front swivel bearing
M6x12 Replace screw.	Tightening torque	8 Nm
