Install the wiring harness section of the transmission wiring harness

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Wiring harness section of transmission wiring harness

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Improper routing of cables and wiring harnesses .
Trapped, crushed or damaged cables may cause short circuits and malfunctions .

Route all cables without abrasions, do not trap and crush.

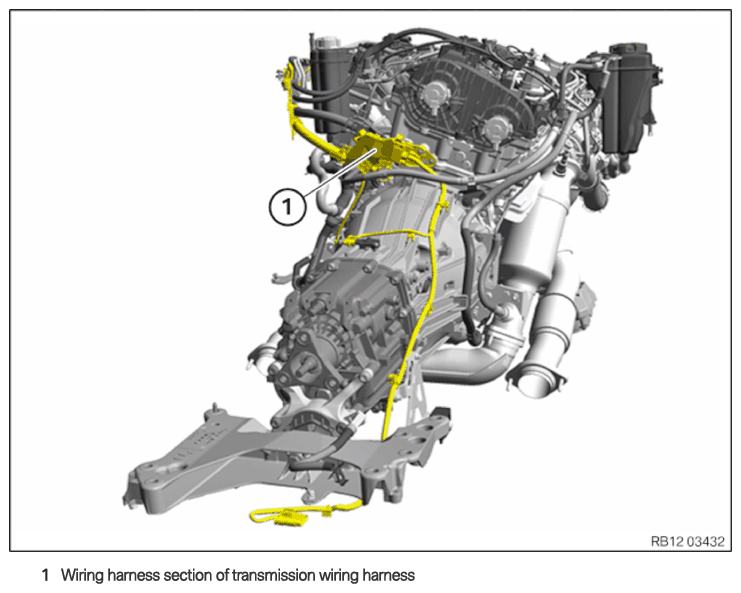

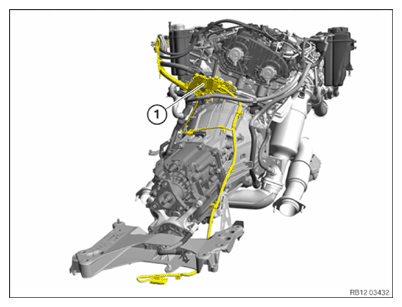

Insert and install the wiring harness (1) for the transmission module.

Courtesy of BMW OF NORTH AMERICA, INC.

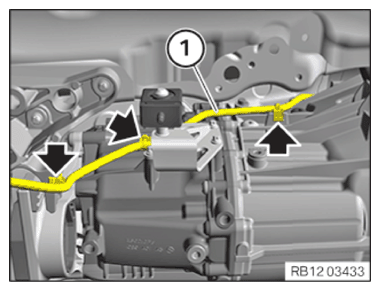

Guide in and install wiring harness section (1) of the transmission wiring harness.
Secure the clamps (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

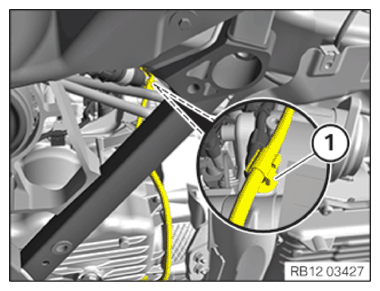

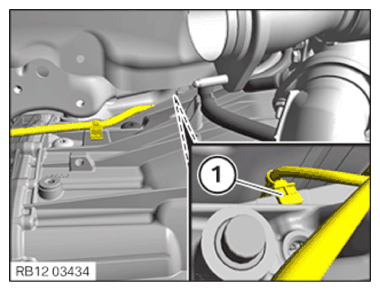

Secure the clamp (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

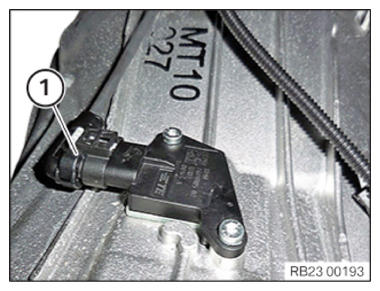

Connect connector (1) to the gear sensor and lock it.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Fastening the transmission

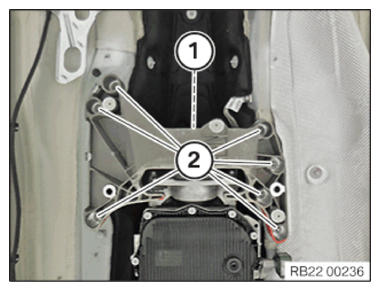

Lift the transmission cross member (1) with the transmission in the installation position.
Tighten down screws (2) .

TIGHTENING TORQUE SPECIFICATIONS

Transmission cross member to body
M8	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

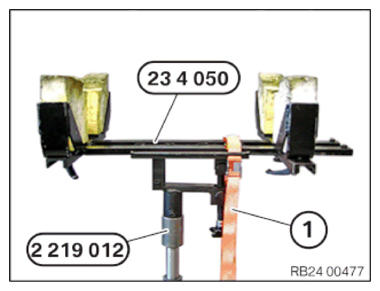

Loosening the luggage strap (1) .
Remove special tools 2 219 012 and 0 495 498 (23 4 050) .

Courtesy of BMW OF NORTH AMERICA, INC.

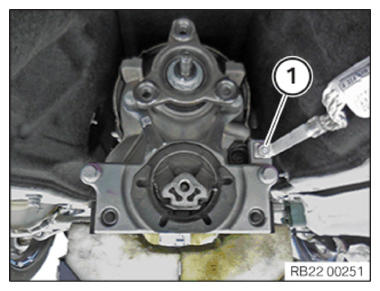

Install the ground strap.
Tighten down screw (1) .

TIGHTENING TORQUE SPECIFICATIONS

Ground strap to transmission or body
M8	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

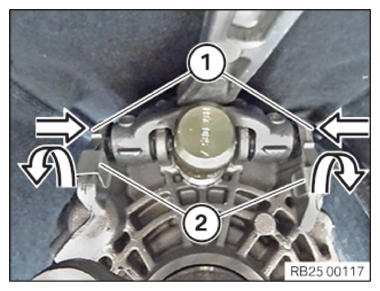

Install the bearing journal (1) in arrow direction.
Lock the fuses (2) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

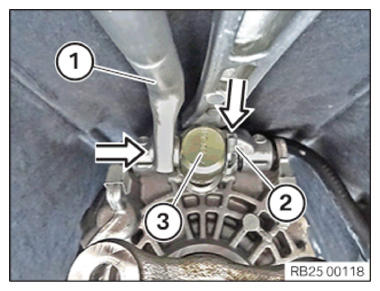

Hook the gearshift rod (1) in arrow direction into the gearshift rod joint (3) .
Insert retaining clip (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Replace screws (1) .
Parts: Screws

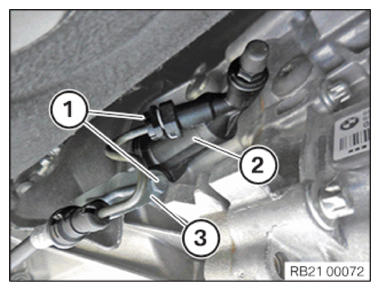

Install the clutch slave cylinder (2) with the holder (3) .
Insert screws (1) and tighten.

TIGHTENING TORQUE SPECIFICATIONS

Clutch slave cylinder to clutch housing/transmission housing
M8 x 25 Replace screws.	Tightening Torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

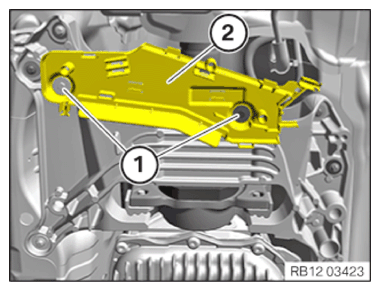

Position the holder (2) .
Tighten the screws (1) .

TIGHTENING TORQUE SPECIFICATIONS

Holder on transmission cross member
Hexagon bolt for thermoplastic	Tightening torque	2.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

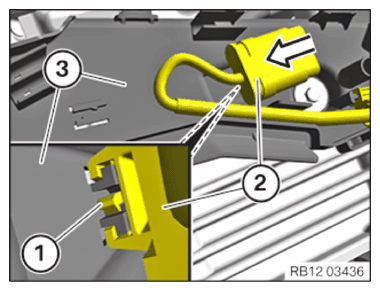

Attach the connector (2) in arrow direction to the holder (3) and lock it.
The lock (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

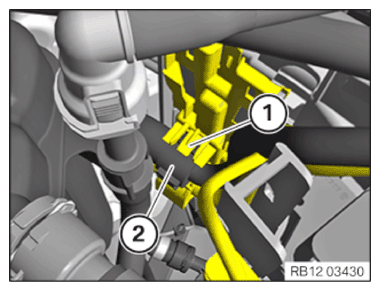

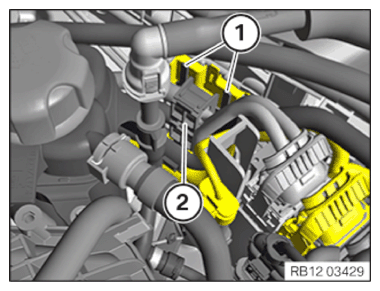

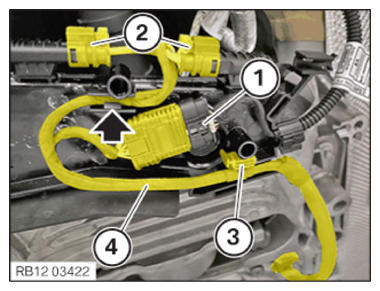

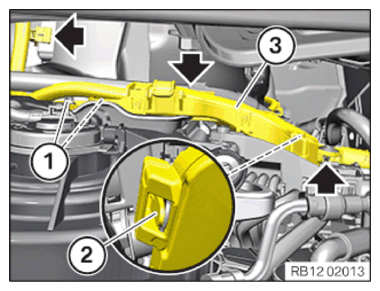

Feed in and install the wiring harness section (4) of the transmission wiring harness into the holder (arrow).
Secure the clamp (3) .
Connect and lock connectors (1) and (2) .
The connectors (1) and (2) engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

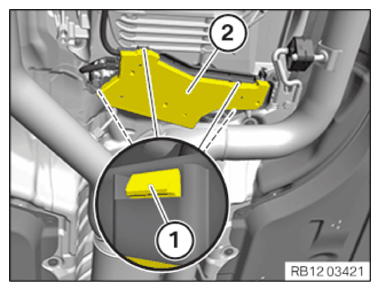

Insert and install the cover (2) .
Ensure that all locks (1) engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

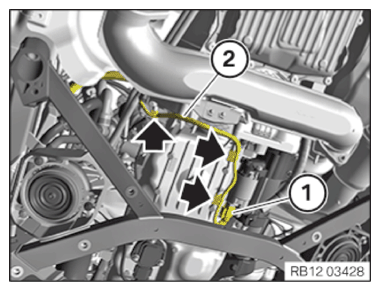

Guide in and install wiring harness section (2) of the transmission wiring harness.
Secure the clamps (arrows).
Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Fasten the cable clip (1) .
Secure the clamps (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in and install the wiring harness section (3) of the transmission wiring harness.
Make sure that the lock (2) engages correctly.
Tighten down screws (1) .

TIGHTENING TORQUE SPECIFICATIONS

Cable bracket on rear cylinder head/transmission
M6 x 20	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Secure the clamps (arrows).
Feed in the cable bracket (2) and install it.
The lock (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in the cable bracket (2) and install it.

The locks (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
