Installing the wiring harness section for the ignition and injectors

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

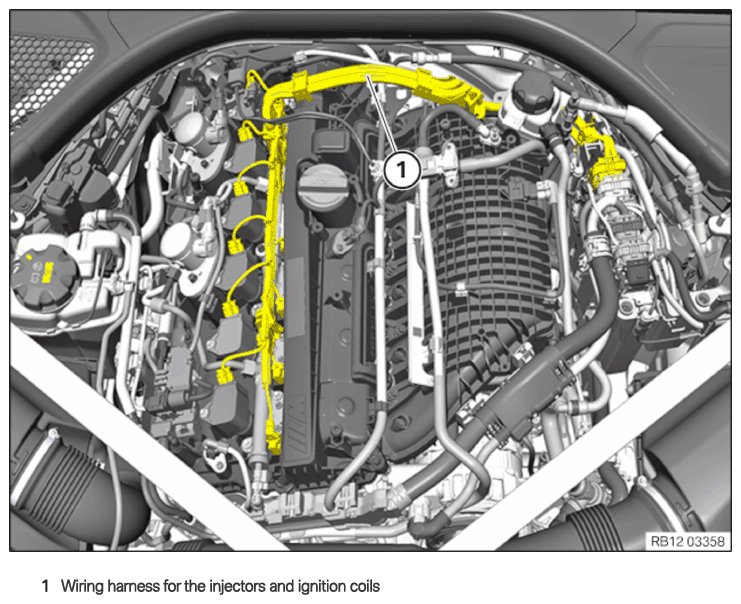

Wiring harness for the injectors and ignition coils

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Improper routing of cables and wiring harnesses .
Trapped, crushed or damaged cables may cause short circuits and malfunctions .

Route all cables without abrasions, do not trap and crush.

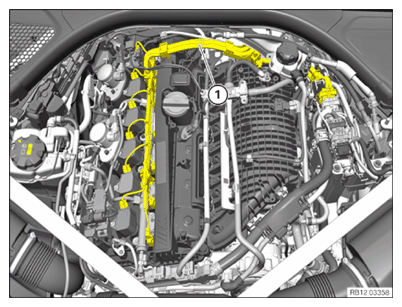

Feed in and install the wiring harness (1) for the injectors and ignition coils.

Courtesy of BMW OF NORTH AMERICA, INC.

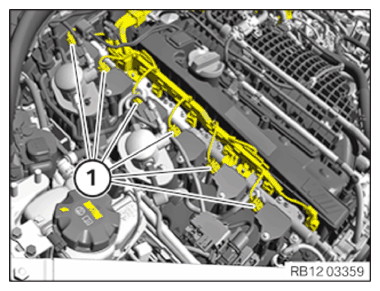

Connect connectors (1) and lock.
The connectors (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

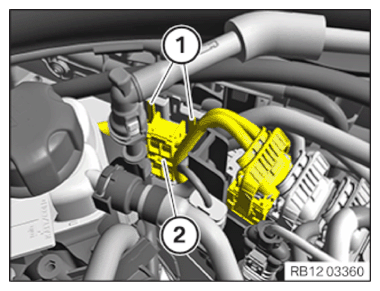

Insert and install the wiring harness section (2) .
Make sure that the locks (1) engage correctly.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connector (3) to the injectors and lock.
All the connectors (3) must engage audibly.
Feed in cable channel (2) and install.
Tighten nuts (1) .

TIGHTENING TORQUE SPECIFICATIONS

Ground cable to rail
M6	tightening torque	5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connectors (1) and lock.
The connectors (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Insert and install the holder (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Attach holder (1) to ball pivot (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Guide in the wiring harness section (1) and install.
The locks (arrows) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Insert and install the wiring harness section (2) .
The lock (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in the plug connection (1) in arrow direction at the holder (2) and install it.

Courtesy of BMW OF NORTH AMERICA, INC.
Tighten the screws (1) .

TIGHTENING TORQUE SPECIFICATIONS

Oxygen sensor bracket to cylinder head cover
Self-tapping screw M6	Tightening torque	5.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE COVER FOR THE DME CONTROL UNIT .
Refer to INSTALLING ACOUSTIC COVER .
Refer to INSTALLING THE STRUT BRACE .
Refer to CONNECTING ALL BATTERY GROUND LEADS .
