Installing camshaft position sensor of intake camshaft
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

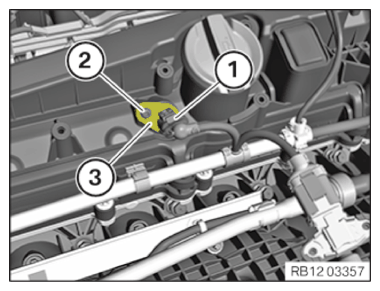

- Check sealing ring (1) for damage, replace if necessary.
- Guide in and install camshaft position sensor (3) of the intake camshaft.
- Tighten down screw (2).
TIGHTENING TORQUE SPECIFICATIONS
| Camshaft position sensor to cylinder head cover | ||
|---|---|---|
| TS5x20 | Tightening torque | 4 Nm |
- Connect connectors (1) and lock.
The connector (1) must engage audibly.
Follow-up work
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE STRUT BRACE .
