Checking the position of the intake camshaft (cylinder head removed)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Check
- Check position of the intake camshaft on the respective cylinders.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Result

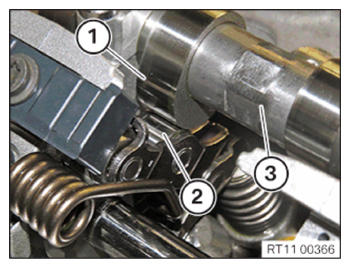

» Cam (1)
of the intake camshaft runs on the intermediate lever (2)
.
Measure
- Continue turning intake camshaft (3)
with a conventional open-end wrench until the cam (1)
does not run on the intermediate lever (2)
.
