Replace the trim panel for the storage shelf

Preliminary work

• Refer to REMOVING REAR SEAT BENCH .
• Refer to REMOVING LEFT AND RIGHT BACKREST SIDE SECTION .
• Refer to REMOVING RIGHT C-PILLAR TRIM PANEL LEFT AND RIGHT .
• Refer to REMOVING SIDE TRIM PANEL, REAR LEFT AND RIGHT .
• Refer to REMOVING THE TRIM PANEL FOR THE STORAGE SHELF .

Remounting the top tether trim

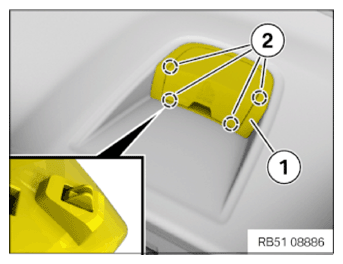

• Release the top tether trim (1) with a suitable special tool from the set of special tools  0 493 752 (00 9 329)  from the detents (2)  .
• Remove the top tether trim (1) from the storage floor.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the left and right side.
• Position the top tether trim (1) on the new storage box.

  Clip in the top tether trim (1) with the detents (2) in the storage floor.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Remove rear mid-range speaker

• Release cover (1) from detents (2) using a suitable special tool from the set of special tools  0 493 752 (00 9 329)
• Remove cover (1) from the storage compartment.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screws (1).
• Lift mid-range speaker (2) to reach the underlying plug connections.

  Courtesy of BMW OF NORTH AMERICA, INC.

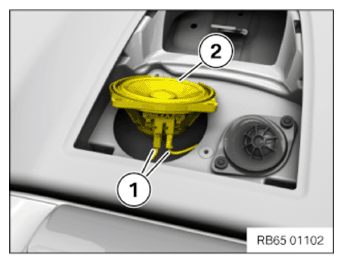

• Unlock and disconnect plug connections (1).
• Remove mid-range speaker (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Remove rear tweeter

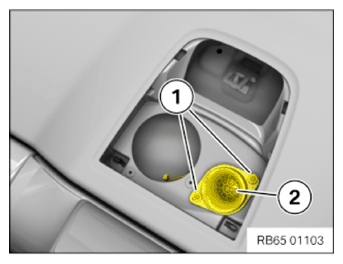

• Loosen screws (1).
• Guide out and remove tweeter (2) with the cable.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Installing the rear tweeter

• Feed in the tweeter (2) with the cable and position correctly.
• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Speaker to rear shelf/support/head restraint
  Screw	Tightening torque	1.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  Installing the rear mid-range speaker

• Position the mid-range speaker (2).
• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

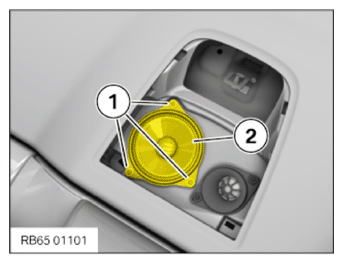

• Correctly position the mid-range speaker (2).
• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Speaker to rear shelf/support/head restraint
  Screw	Tightening torque	1.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

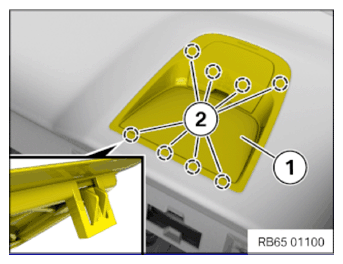

• Position the cover (1) from the storage box,
• Clip in cover (1) with the detents (2) in the storage box.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TRIM PANEL FOR THE REAR SHELF .
• Refer to INSTALLING LEFT AND RIGHT REAR SIDE TRIM PANEL .
• Refer to INSTALLING THE LEFT AND RIGHT C-PILLAR TRIM PANEL .
• Refer to INSTALLING THE LEFT AND RIGHT BACKREST SIDE SECTION .
• Refer to INSTALLING THE REAR SEAT .
