Checking the hydraulic fluid level of the hydraulic unit of the convertible top drive

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Precondition

The convertible top was completely opened and closed 2 times.

The convertible top is closed.

Remove luggage compartment floor covering

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Remove the luggage compartment floor covering (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the loading edge trim

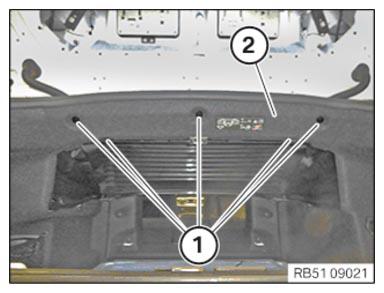

Loosen the expanding rivet (1).
Unclip the loading edge trim from the clamps upwards.
Feed out the loading edge trim at the tailgate seal and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove trunk compartment light

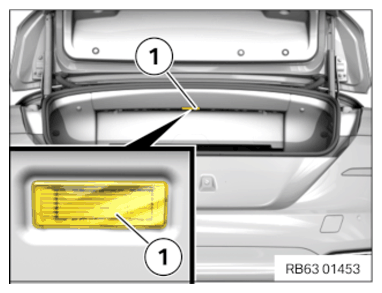

Unclip luggage compartment lamp (1) with special tool 0 490 539 (00 9 322) .

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock plug connection (1) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the upper luggage compartment trim panels

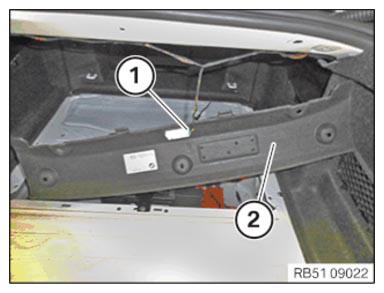

Loosen the expanding rivet (1).
Remove the luggage compartment trim panel (2) by pushing it downwards.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock plug connection (1) and disconnect.
Remove luggage compartment trim panel (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Remove right luggage compartment wheel arch trim panel.
Unclip the emergency unlocking (1) of the convertible top compartment lid from the luggage compartment wheel arch trim panel (4).
Detach the cable (2).
Release the expanding rivet (3).
Feed out the luggage compartment wheel arch trim panel (4) towards the inner side.
If necessary, unlock and disconnect the existing plug connection and remove the luggage compartment wheel arch trim panel (4).

Courtesy of BMW OF NORTH AMERICA, INC.

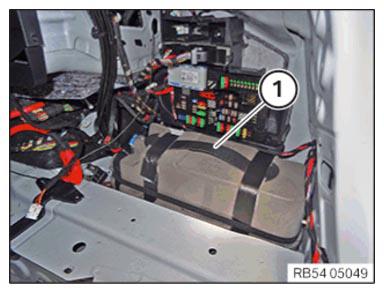

Guide out hydraulic unit (1) and place it in the cargo area.

Courtesy of BMW OF NORTH AMERICA, INC.

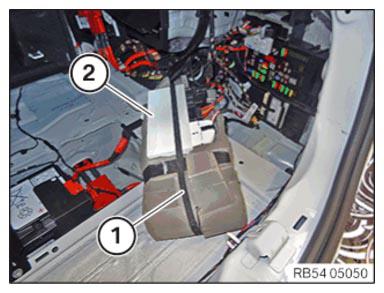

Remove retaining strap (1).
Remove the control unit (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Check

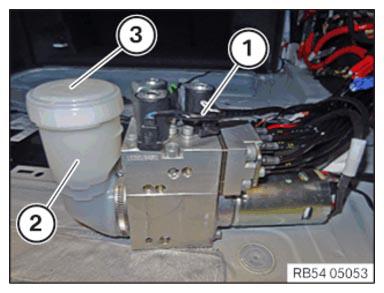

- Store the hydraulic unit (1) level.
- Open and close convertible top at least 2 times.
- With the convertible top closed, check if the oil level is within the mark on fluid tank (2).
Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Oil level outside of the mark (2).

Measure
- Open lid (3) and correct the oil level.

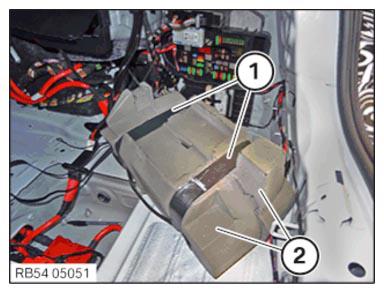

Position coating (2) made of foam material.
Attach adhesive tapes (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Position control unit (2).
Attach retaining strap (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Guide in and position hydraulic unit (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Install luggage compartment wheel arch trim panel on right
Install the center armrest and connect any lock any connectors present.
Correctly position the luggage compartment wheel arch trim panel.
Mount the expanding rivets (3).
Attach the cable.
Clip- the luggage compartment in the luggage compartment wheel arch trim panel.

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the top luggage compartment trim panel
Install the decorative strip.
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
Installing the top luggage compartment trim panel.
Mount the expanding rivets (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Install trunk compartment light
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
Clip in the trunk compartment light (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installing loading edge trim

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.
Check clamp (1) for damage.
Defective or missing clamps (1) need to be replaced.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed the loading edge trim (2) into the tailgate seal.
Fit the trim of the loading edge (2) at the detents (3) and clip it in to the bottom.
Secure expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Install luggage compartment floor covering

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.
Insert the luggage compartment floor panel (1).

Courtesy of BMW OF NORTH AMERICA, INC.
