If fitted: Bleeding the clutch hydraulic system (only for vehicles with manual transmission)

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Venting clutch hydraulic system

NOTE: TECHNICAL INFORMATION
Connect bleeder unit to brake fluid expansion tank.
Check relevant equipment manufacturer's operating instructions for each device.
Charging pressure should not exceed 2 bar.

Courtesy of BMW OF NORTH AMERICA, INC.

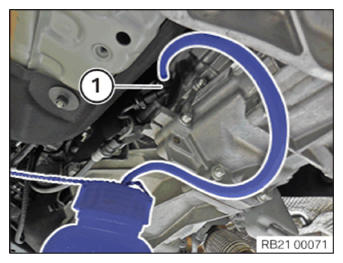

Remove the dust cap from the bleed valve (1).
Connect the vent hose to the bleed valve (1).
Open bleed valve (1) and purge it until clear, bubble-free brake fluid emerges.
Close bleed valve (1).
Switch off bleeder unit or remove from brake fluid expansion tank.
Correct brake fluid level in expansion tank.

Follow-up work

Refer to DISCONNECTING THE BLEEDER UNIT FOR THE BRAKE FLUID .
Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
Refer to PERFORMING THE CBS RESET .
Refer to CHECKING THE GAS PRESSURE SPRINGS FOR HOOD (ONLY FOR VERSIONS WITH ACTIVE PEDESTRIAN PROTECTION (SA8TF)) .
