Install the gasket for the glass slide/tilt sunroof panel
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Notes on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
For additional information see: 51 00... NOTES ON COMPONENT BONDING WITH ADHESIVE TAPE .
Notes on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
For additional information see: 51 00... NOTES ON COMPONENT BONDING WITH ADHESIVE TAPE .
- Clean the bonding surface completely.

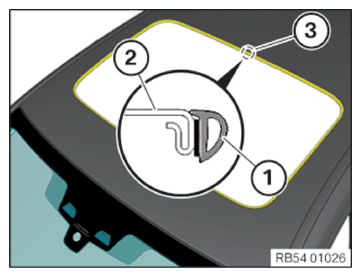

- Begin bonding the gasket (1) at the mark for the sealing joint (3).
- Bond the gasket (1) in sections and flush with the roof outer skin (2).
Bond the gasket (1) without expansion (slightly compressed).
Only lightly press on the gasket (1) to correct the position if required.
Establish a gap-free sealing joint.
- Check the gasket (1) is positioned correctly and if applicable, correct the position.

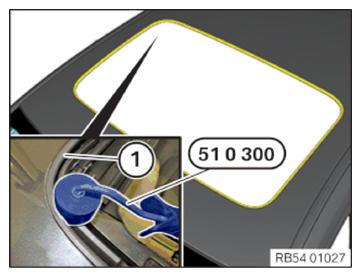

- Press the gasket (1) onto the roof outer skin using the special tool 0 495 505 (51 0 300) .
- Apply additional pressure to the corners of the gasket (1).
