Installing the DVD player (small center console)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
- Insert the DVD player (2) slightly into the center console.

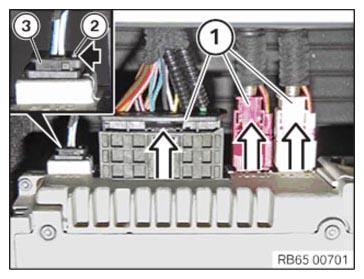

- Connect the connectors (1) and lock the detents (arrows) correctly.
- Connect the connectors (3) and correctly lock the latch mechanisms (2).

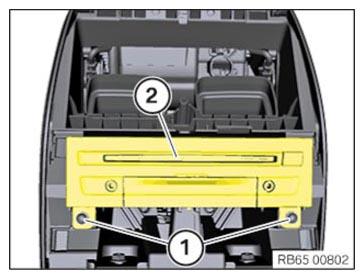

- Correctly position the DVD player (2) and tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| DVD player to center console | ||
|---|---|---|
| screw | Tightening torque | 2.3 Nm |
Follow-up work
- Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
- Refer to CONNECTING BATTERY GROUND LEAD .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
