Remove the drive with the transmission for the rear sliding/tilting sunroof
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.
Electrostatic discharge.
Damage to or destruction of electrical components.
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see:61 35... NOTES ON ESD (ELECTROSTATIC DISCHARGE) PROTECTION .
NOTE:
TECHNICAL INFORMATION
The following procedure forms the basis for these repair instructions and must be observed without fail.
For additional information see: 51 31... GENERAL PROCEDURE FOR DISASSEMBLY/INSTALLATION OF BONDED WINDOW GLASS .
The following procedure forms the basis for these repair instructions and must be observed without fail.
For additional information see: 51 31... GENERAL PROCEDURE FOR DISASSEMBLY/INSTALLATION OF BONDED WINDOW GLASS .
Preliminary work
- Refer to REMOVING A-PILLAR TRIM PANEL ON THE LEFT AND RIGHT .
- Refer to REMOVING COUNTER SUPPORTS FOR SUN VISOR ON LEFT AND RIGHT .
- Refer to REMOVING THE LEFT AND RIGHT SUN VISOR .
- Refer to REMOVING BOTH VANITY MIRROR LIGHTS .
- Refer to REMOVING RIGHT HANDS-FREE MICROPHONE .
- Refer to REMOVING THE LEFT HANDS-FREE MICROPHONE .
- Refer to REMOVING THE ROOF FUNCTION CENTER (FZD) .
- Refer to REMOVING REAR INTERIOR ROOF LIGHT .
- Refer to REMOVING THE TOP LEFT AND RIGHT B-PILLAR TRIM PANELS PARTIALLY .
- Refer to REMOVING BOTH C-PILLAR TRIM PANELS .
- Refer to REMOVING ALL GRAB HANDLES .

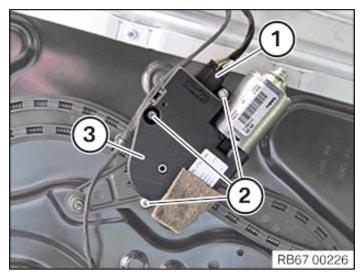

- Unlock and disconnect connector (1).
- Loosen screws (2).
- Remove drive (3).
