Installing the backrest upper section adjustment motor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Correctly position the backrest upper section adjustment motor (2).
Push in the clamp (3).
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
Tighten nut (2).

TIGHTENING TORQUES SPECIFICATION

Drive/transmission for backrest upper section adjustment to backrest frame
Nut M5	Tightening torque	5.5 Nm

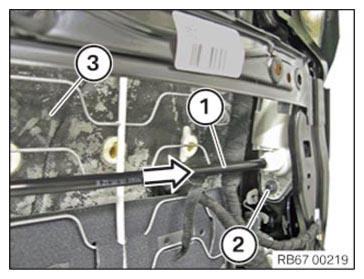

Push the shaft (1) into the stand in the direction of the arrow and lock it.

Courtesy of BMW OF NORTH AMERICA, INC.
Fold back the seat cover (3).
Secure the seat cover (1) in the signaled area.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE BOTTOM REAR PANEL ON THE FRONT SEAT REAR PANEL .
Refer to INSTALLING THE TOP REAR PANEL ON THE FRONT SEAT REAR PANEL .
Refer to INITIALIZING THE ELECTRICAL SEAT ADJUSTMENT DRIVES .
