Installing the drive for the backrest angle adjustment

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Insert the drive for the backrest angle adjustment (2).
Connect plug (1).

Courtesy of BMW OF NORTH AMERICA, INC.

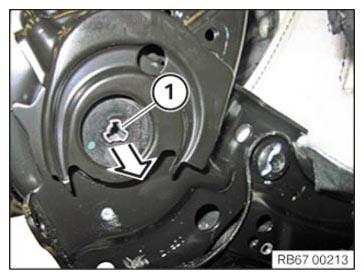

Pull out the drive linkage (1) in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.
Tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Check the seat functions of the front seat
Connect special tool 0 496 519 (61 4 150) with the wiring harness of the vehicle and the removed front seat.

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnecting all battery ground leads
See additional information.

Courtesy of BMW OF NORTH AMERICA, INC.
Check the seat functions using the operating unit on the front seat.
Disconnecting all battery ground leads
See additional information.

Courtesy of BMW OF NORTH AMERICA, INC.
Disconnect the special tool 0 496 519 (61 4 150) from the wiring harness of the vehicle and from the removed front seat.

NOTE: Perform the steps on the right and left side.

Attach the backrest cover (2).
Secure the clip (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Secure the seat cover (1) in the signaled area.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to MOUNTING THE REAR PANEL ON THE FRONT SEAT BACKREST .
Refer to INSTALLING INNER COVER ON FRONT SEAT .
Refer to INSTALLING OUTER COVER ON FRONT SEAT .
Refer to INSTALLING FRONT SEAT .
Refer to INITIALIZING THE ELECTRICAL SEAT ADJUSTMENT DRIVES .
