Removal Of The Luggage Compartment Center Floor Piece

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform the steps on the left and right side.

Open welded connections in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
For additional information see: OPENING BONDED CONNECTIONS REP-ALG-RAGRP41-4105702 - V.3 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .

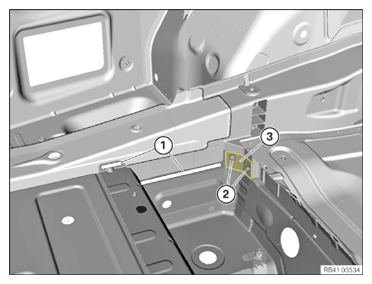

Release welded connections in areas (1).
Undo the self-tapping screws (2).
Release bonded connection in area (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Release the self-tapping screw and bonded connection in the area (1).
Release welded connections in areas (2).
(3) Remove luggage compartment floor.

Courtesy of BMW OF NORTH AMERICA, INC.
