Replacing the gasket seal of the tail light on the left trunk lid
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING THE POWER TAILGATE SWITCH .
- Refer to REMOVING TAILGATE TRIM PANEL .
- Refer to REMOVING THE TAIL LIGHT ON THE LEFT OF THE TRUNK LID .

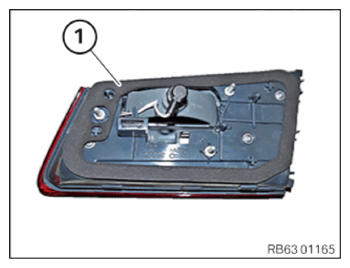

- Remove the gasket (1) .
- Clean bonding surface.
- Replace the seal (1)
.
Parts: Gasket
- Stick on (1) gasket.
Follow-up work
- Refer to INSTALLING THE TAIL LIGHT ON THE TRUNK LID ON THE LEFT .
- Refer to INSTALLING THE POWER TAILGATE SWITCH .
- Refer to INSTALLING THE TAILGATE TRIM PANEL .
