Installing the auxiliary turn signal lamp on the outside rearview mirror
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

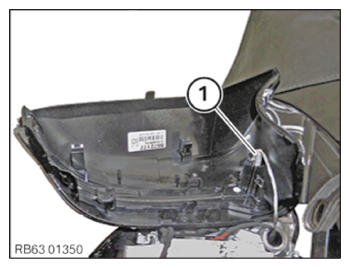

- Position the auxiliary turn signal lamp (1) and install.

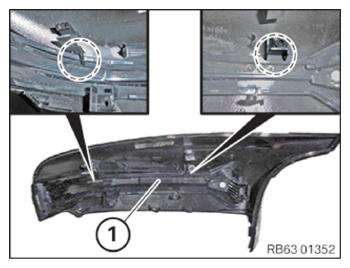

- Make sure the detents in the marked areas are correctly engaged.

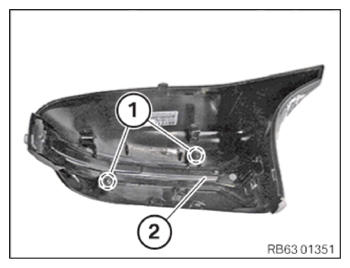

- Tighten the screws (1) on the auxiliary turn signal lamp (2).
TIGHTENING TORQUES SPECIFICATION
| Auxiliary turn signal lamp on housing cover | ||
|---|---|---|
| Oval-head screw | Tightening torque | 1.2 Nm |
- Connect connectors (1) and lock.
Follow-up work
- Refer to INSTALLING THE PROTECTIVE CAP OF THE EXTERIOR VEHICLE MIRROR .
- Refer to INSTALLING THE MIRROR GLASS .
