Installing the bearing bracket for the pedal mechanism
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

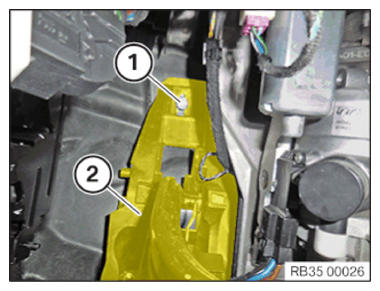

- Install bearing bracket (2).
- Replace the screw (1).
Parts: Screw
- Position and tighten the screw (1).
TIGHTENING TORQUES SPECIFICATION
| Pedal bracket on body | ||
| M8 Replace screw. | tightening torque | 22 Nm |
- Replace nuts (1).
Parts: Nuts
- Install the nuts (1) and tighten.
TIGHTENING TORQUES SPECIFICATION
| Brake booster to pedal assembly console | ||
| Replace nuts. M8 Retighten 1x on brake booster after 10 min. |
tightening torque | 22 Nm |
NOTE:
The following step(s) must be performed if the listed component(s) is/are installed.
- Connect connector (1).
NOTE:
The following step(s) must be performed if the listed component(s) is/are installed.
- Connect connector (1).
- Lock brake pedal (1) in place in the arrow direction with the brake booster.
Make sure that the brake pedal is completely locked with the brake booster!
Follow-up work
- Refer to INSTALLING BRAKE LIGHT SWITCH .
- Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
