Installing the anti-roll bar link
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

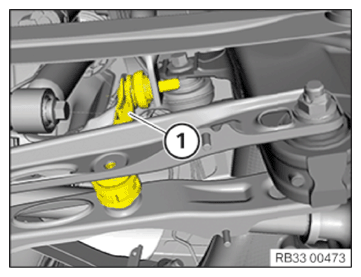

- Position the anti-roll bar link (1).

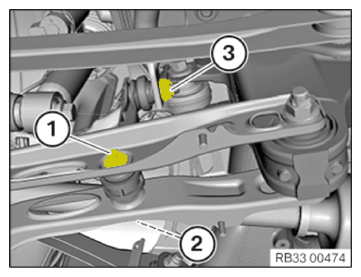

- Replace the screw (1) and the nuts (2) and (3).
Parts: Bolt, nuts
- Insert screw (1).
- Tighten nut (2).
TIGHTENING TORQUE SPECIFICATIONS
| Anti-roll bar link to camber control arm | ||
| M10 Replace screw and nut. Tighten in NORMAL POSITION . |
Joining torque Angle of rotation |
56 Nm 90° |
- Tighten nut (3).
TIGHTENING TORQUE SPECIFICATIONS
| Anti-roll bar link to anti-roll bar | ||
| M12 Replace nut. | tightening torque | 100 Nm |
Follow-up work
