Installing the wheel bearing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
- Clean the contact surfaces (2) of the wheel bearing (1) and swivel bearing.
The contact surfaces must be clean and free from grease.
- Position the wheel bearing (1) on the wheel carrier.
- Replace the spherical-collar screws (1).
Parts: Spherical-collar screw

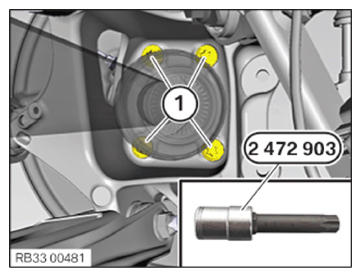

- Tighten the spherical-collar screws (1) with the special tool 2 472 903 .
TIGHTENING TORQUE SPECIFICATIONS
| Wheel bearing to wheel carrier | ||
| M12 Replace spherical collar screws. Tighten the spherical-collar screws in crosswise sequence. The tightening sequence must be followed strictly and carried out on all spherical-collar screws at the same time! |
Tightening torque | 20 Nm |
| Initial torque | 140 Nm | |
| Unscrew all bolts. | max. 45° | |
| Tightening torque | 120 Nm | |
| Angle of rotation | 90° | |
Follow-up work
- Refer to INSTALLING THE REAR BRAKE DISC .
- Refer to SECURING REAR BRAKE CALIPER .
- Refer to FASTENING THE OUTPUT SHAFT ON THE WHEEL BEARING .
- Refer to INSTALLING THE COVER OF THE CAMBER CONTROL ARM .
- Refer to MOUNTING THE WHEEL .
