Observe the installation position of the rubber mount in the rear axle support
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

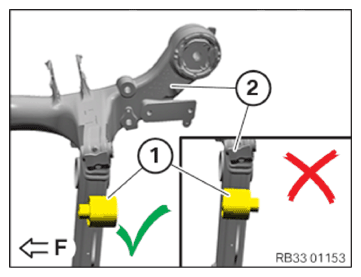

- Observe the installation position of the rubber mount (1)
in the rear axle support (2)
.
(F) = driving direction

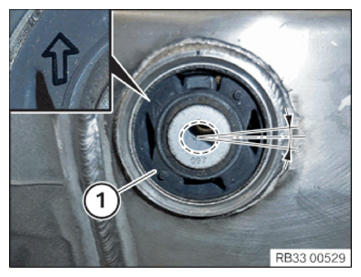

- Align the elongated hole of the rubber mount (1)
correctly in the transverse direction of vehicle.
A deviation of maximum ± 5° is permitted.
- Make sure that the arrow on the rubber mount (1) points upwards.
- Add a mark on the outer area of the rubber mount (1) for checking before the installation.
