Installing the rubber mount at the rear of the rear axle differential mounting
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

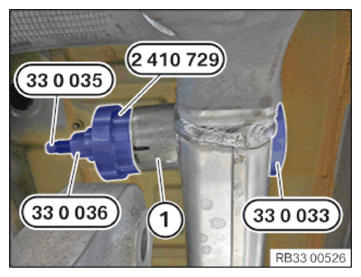

- Pull in the rubber mount (1) using special tools 0 496 509 (33 0 033) , 2 410 729, 0 496 511 (33 0 035) and 0 496 512 (33 0 036) .
Follow-up work
- Refer to LIFTING THE REAR AXLE DIFFERENTIAL .
- Refer to INSTALLING THE HEAT SHIELD AT THE REAR .
- Refer to INSTALLING EXHAUST SYSTEM .
- Refer to INSTALLING THE REAR TUNNEL CONNECTING SUPPORT .
- Refer to INSTALLING THE REINFORCEMENT STRUT .
- Refer to INSTALLING UNDERSHIELD ON THE FUEL TANK ON THE RIGHT .
- Refer to INSTALLING THE UNDERSHIELD ON THE LEFT FUEL TANK .
- Refer to INSTALLING THE REAR DIFFUSER .
- Refer to INSTALLING THE COVER OF THE CAMBER CONTROL ARM ON THE LEFT AND RIGHT .
