Removing the servomotor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot exhaust system.
Risk of burning!

Any work must exclusively be carried out with an exhaust system that has cooled down.

Preliminary work

Refer to REMOVING THE COVER OF THE RIGHT CAMBER CONTROL ARM .

Unlock and disconnect the plug connections (1) and (2).
Release the cable with the holders (3) from the rear axle differential.

Courtesy of BMW OF NORTH AMERICA, INC.

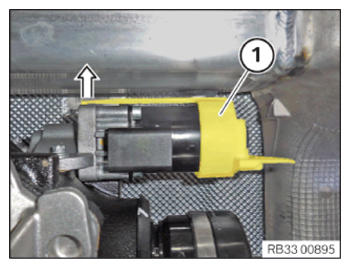

Unlock and remove the holder (1) in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).
Remove the servomotor (2).

Courtesy of BMW OF NORTH AMERICA, INC.
