Installing the servomotor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

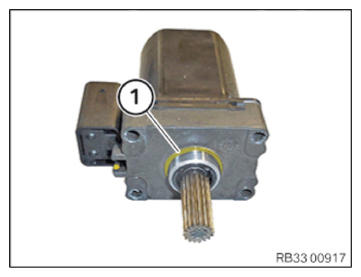

Replace O-ring (1).
Parts: O-ring

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
The gearing of servomotor and idler gear must be checked and the positive locking ensured.

Courtesy of BMW OF NORTH AMERICA, INC.

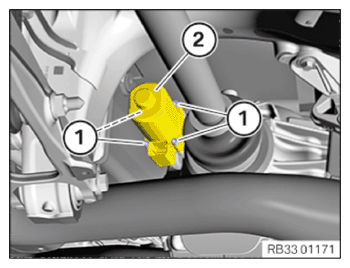

Feed in and position the servomotor (2).
The servomotor (2) must rest flat.
Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Servomotor on rear axle differential
M6	tightening torque	9 Nm

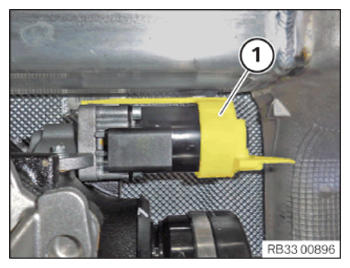

Position the holder (1) on servomotor and engage.

Courtesy of BMW OF NORTH AMERICA, INC.

Secure the cable with the holders (3) to the rear axle differential.
Connect connectors (1) and (2) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE COVER OF THE RIGHT CAMBER CONTROL ARM .
Refer to FOR REPLACEMENT (BEVEL GEARS OR SERVOMOTOR): CARRYING OUT THE "DELETE WEAR DATA" SERVICE FUNCTION .
