Cleaning the sealing surfaces and applying liquid sealing compound
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Only liquid sealing compound may be used!
To avoid the rear differential fluid from foaming over, ensure that no residual liquid sealing compounds enter into the housing of the rear axle differential.
Only liquid sealing compound may be used!
To avoid the rear differential fluid from foaming over, ensure that no residual liquid sealing compounds enter into the housing of the rear axle differential.
NOTE:
TECHNICAL INFORMATION
The processing time of the liquid sealing compound can be at a maximum of 10 min.
Commissioning of the assembly is not possible until 25 minutes after the processing time.
Non-observance can lead to leaks in the assembly.
The processing time of the liquid sealing compound can be at a maximum of 10 min.
Commissioning of the assembly is not possible until 25 minutes after the processing time.
Non-observance can lead to leaks in the assembly.

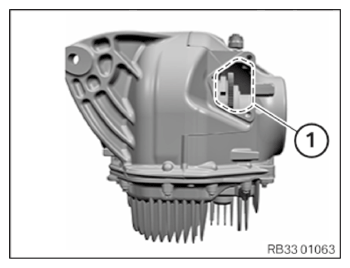

- Completely remove liquid sealing compound residue on the servomotor and the rear axle differential.

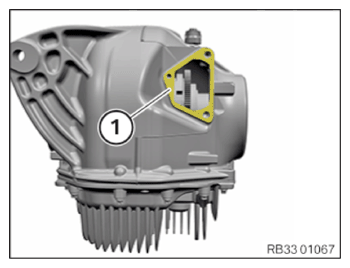

- Clean sealing surface (1).
- Prepare the liquid sealing compound (1) with the special tool 2 469 803
.
Parts: Liquid sealing compound
SEALING COMPOUND DESCRIPTION
| Loctite 5970 liquid sealing compound Processing time <10 minutes at room temperature | 50 ml, Cartridge | 83190404517 |
