Refitting engine oil pan

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

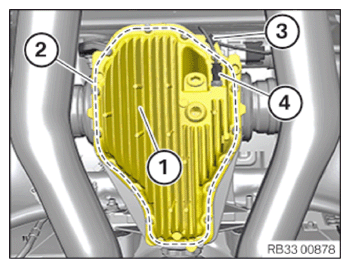

Position the oil sump (1).

Tighten the screws crosswise along the dashed line (2).

TIGHTENING TORQUE SPECIFICATIONS

Oil pan on rear axle differential
M6x30 Tighten crosswise.	Tightening torque	12 Nm

Connect connectors (4) and lock.
Fasten the holder (3) to the rear axle differential.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to TOPPING UP THE REAR DIFFERENTIAL FLUID .
