Replacing the rear axle differential
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Heavy component.
Heavy components can lead to injury or damage.
Heavy components can lead to injury or damage.
- Remove and install heavy components with the aid of another person/other persons.

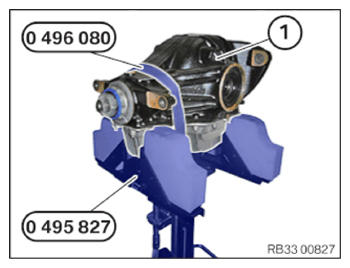

- Release special tool 0 496 080 (33 5 206) .
- Lift down existing rear axle differential (1) from the special tool 0 495 827 (23 4 150) .
- Replace the rear axle differential (1)
.
Parts: Rear axle differential
- Position the new rear axle differential (1) on the special tool 0 495 827 (23 4 150) .
- Secure rear axle differential (1) with the special tool 0 496 080 (33 5 206) on the special tool 0 495 827 (23 4 150) .
NOTE:
Perform the steps on the right and left side.
- Remove protective cap of the radial shaft seal (2) .
- Insert installation protection ring (1) in radial shaft seal (2) .
