Remove side airbag from front seat
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Precondition
- Front seat and front seat backrest are adjusted completely towards the front.
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE REAR PANEL OF THE FRONT SEAT BACKREST .
- Refer to REMOVING OUTER COVER ON FRONT SEAT .
WARNING:
Airbag unit.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: 72 00 SAFETY REGULATIONS ON HANDLING COMPONENTS WITH GAS GENERATORS .
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: 72 00 SAFETY REGULATIONS ON HANDLING COMPONENTS WITH GAS GENERATORS .
- Detach the backrest cover (1) in signaled area.
- Loosen clip (1).
- Detach the backrest cover (2) in this area (3).

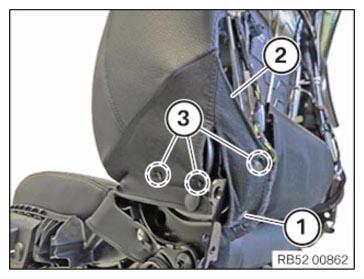

- Unlock plug connection (1) and disconnect.
- Cover the area around the rivet head (2).
- Drill out the rivet head (2).
- Remove the airbag module from the backrest frame and lining pocket (3) in the direction of the arrow.
- Fully remove rivet remnants.
