Install side airbag on front seat
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: 72 00 SAFETY REGULATIONS ON HANDLING COMPONENTS WITH GAS GENERATORS .
WARNING:
Airbag unit.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: 72 00 SAFETY REGULATIONS ON HANDLING COMPONENTS WITH GAS GENERATORS .

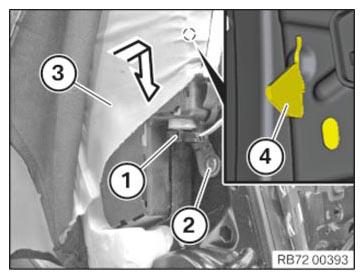

- Feed side airbag in the arrow direction into the backrest frame and the upholstery pocket (3).
- Make sure the guide (4) is positioned correctly.
- Replace the blind rivet (2).
Parts: Blind rivet
- Secure the side airbag using the blind rivet (2).
- Unlock plug connection (1) and disconnect.
- Attach the backrest cover (2) in this area (3).
- Insert the clip (1).
- Attach the backrest cover (1) in the signaled area.
Follow-up work
- Refer to MOUNTING THE REAR PANEL ON THE FRONT SEAT BACKREST .
- Refer to INSTALLING OUTER COVER ON FRONT SEAT .
- Refer to CONNECTING BATTERY GROUND LEAD .
