Installing the radial shaft seal of the drive flange (ATC 13-1)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Damage to the transmission .
Damage to the transmission due to unapproved transmission oil .
Damage to the transmission .
Damage to the transmission due to unapproved transmission oil .
- Use only the approved transmission oil.
- Check the transmission oil level after completing the repair.
- Coat sealing lips of new radial shaft seal with clean transmission oil.

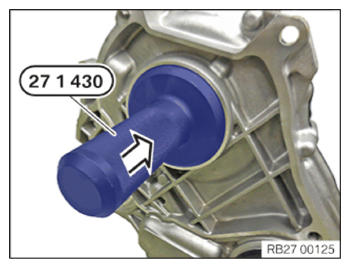

- Drive in the radial shaft seal with the special tool 0 495 241 (27 1 430) .
Follow-up work
- Refer to INSTALLING THE TRANSFER BOX (ATC 13-1) .
- Refer to CHECKING/TOPPING UP THE TRANSFER BOX OIL (ACTIVE TORQUE CONTROL 13-1) .
- Refer to FASTENING THE PROP SHAFT (PARTIALLY REMOVED) .
- Refer to INSTALLING TRANSMISSION CROSS MEMBER .
- Refer to INSTALLING THE HEAT SHIELDS .
- Refer to INSTALLING EXHAUST SYSTEM .
- Refer to INSTALLING THE REAR TUNNEL CONNECTING SUPPORT .
- Refer to INSTALLING THE REINFORCEMENT STRUT .
- Refer to INSTALLING UNDERSHIELD ON THE FUEL TANK ON THE RIGHT .
- Refer to INSTALLING THE UNDERSHIELD ON THE LEFT FUEL TANK .
- Refer to INSTALLING THE REAR DIFFUSER .
- Refer to CONNECTING BATTERY GROUND LEAD .
