Remove the backrest cover from the rear seat backrest
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING REAR SEAT BENCH .
- Refer to REMOVING LEFT BACKREST SIDE SECTION .
- Refer to REMOVING REAR SEAT BACKREST, LEFT .
- Refer to REMOVING THE REAR SEAT BACKREST AT THE CENTER .
- Refer to REMOVING THE REAR HEAD RESTRAINT ON THE SIDE .
- Refer to REMOVING THE REAR PANEL ON THE LEFT REAR SEAT BACKREST .
- Refer to REMOVING THE GUIDE SLEEVE FOR THE REAR HEAD RESTRAINT .
- Refer to REMOVING THE BACKREST FRAME FOR THE LEFT REAR SEAT BACKREST .
NOTE:
Description is for left component only. Procedure on the right side is identical.
- Loosen all clamps on the trim wires.

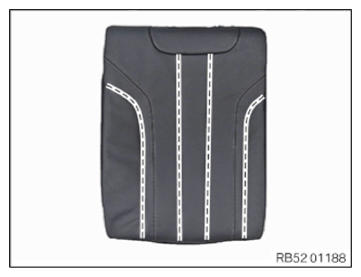

- Remove the backrest cover from the upholstery.
- Completely remove the clamps from the backrest cover and the cushion.
